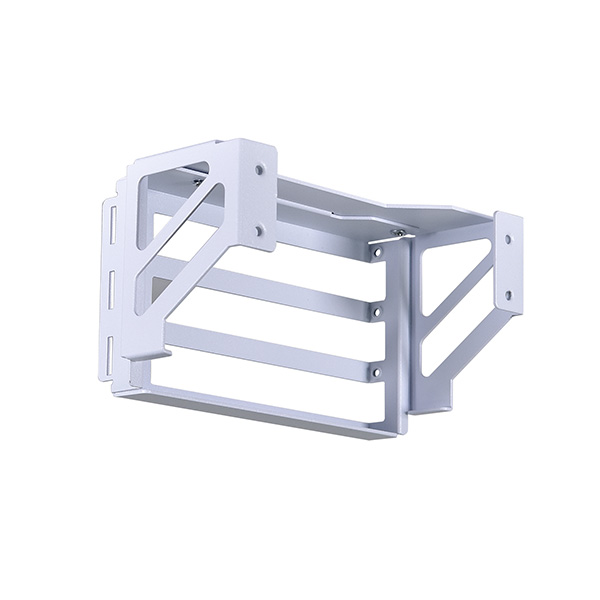

The Lian Li O11D EVO Upright GPU Bracket allows you to show off your graphics card in a unique way with the upright bracket. It can be mounted on the HDD tray panel or fan bracket and supports up to 3 slot thick graphics cards.
Note: PCIe riser cable is not included (sold separately).
Show off your graphics card in a unique way with the exclusive upright GPU bracket.
Normal mode
Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.
Normal mode
Paired with the upright GPU kit, the front mesh kit (sold separately) provides the O11D EVO with additional fresh air intake from the front increase the cooling to the GPU and CPU.

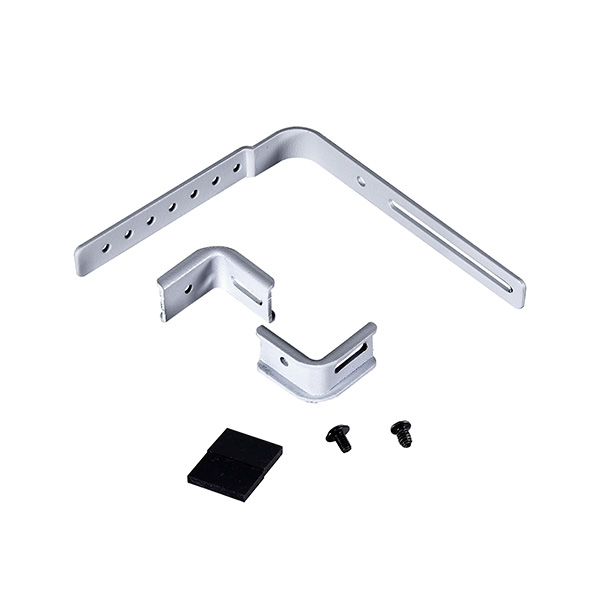

While the bracket supports up to 3 slots thick, thin GPUs can be mounted at the second slot. In addition, the L-type support bracket can be adjusted according to the GPU's width and thickness.
Note: Plug the display cable to the graphics card before installing the upright GPU on the chassis.
When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm and 120mm for fans.
| SPECIFICATIONS | |
| Product Name | Upright GPU bracket for O11D EVO |
| Model | O11DE-6W |

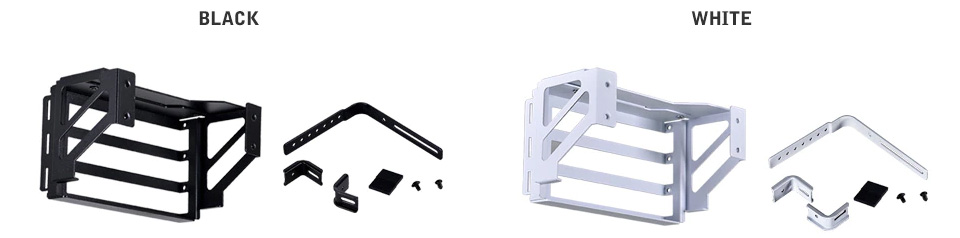

| Colour | Black |
| Bracket Dimensions (L x D x H) | Mounting Frame: 71.8 x 128 x 67.58mm Support Frame: 70 x 81 x 10mm |
| Material | 1mm Steel/1.2mm Steel |
| Expansion Slot | 3 slots |

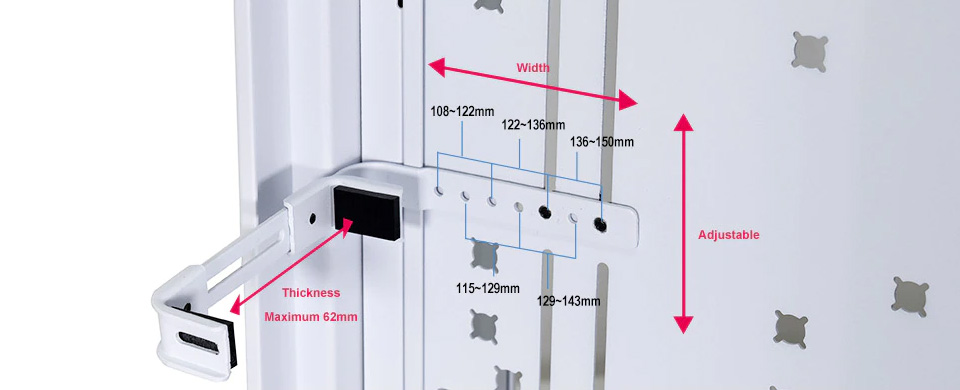

| GPU Clearance | Thickness: Maximum 62mm thick Width: HDD Tray Scenario: 108 ~ 150mm Fan Bracket Scenario: 135 ~ 150mm |
| Warranty | 1 Year |
