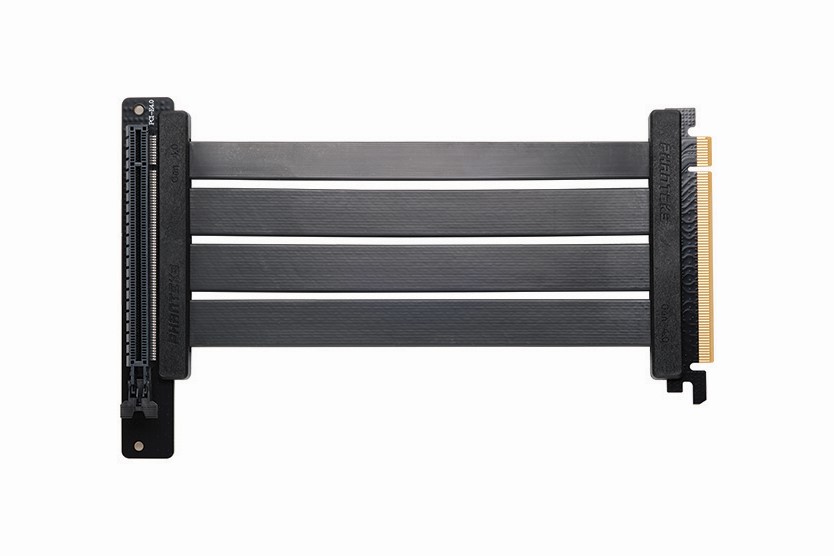

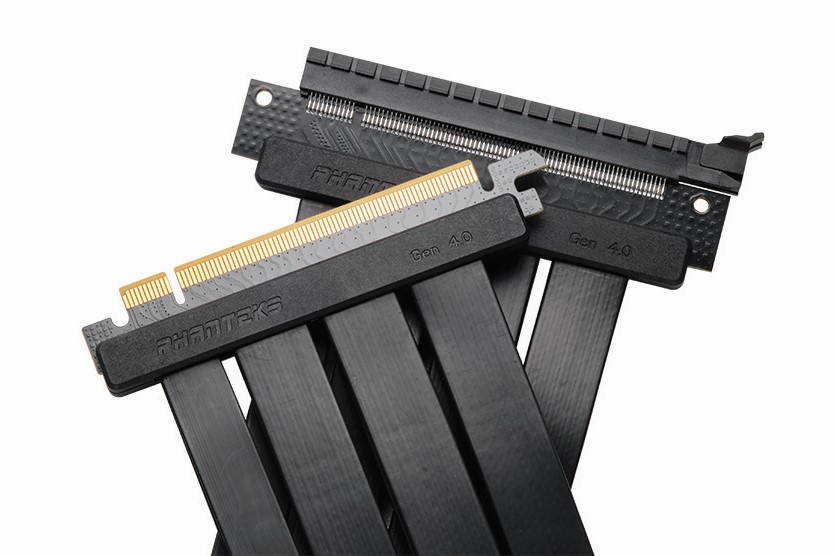

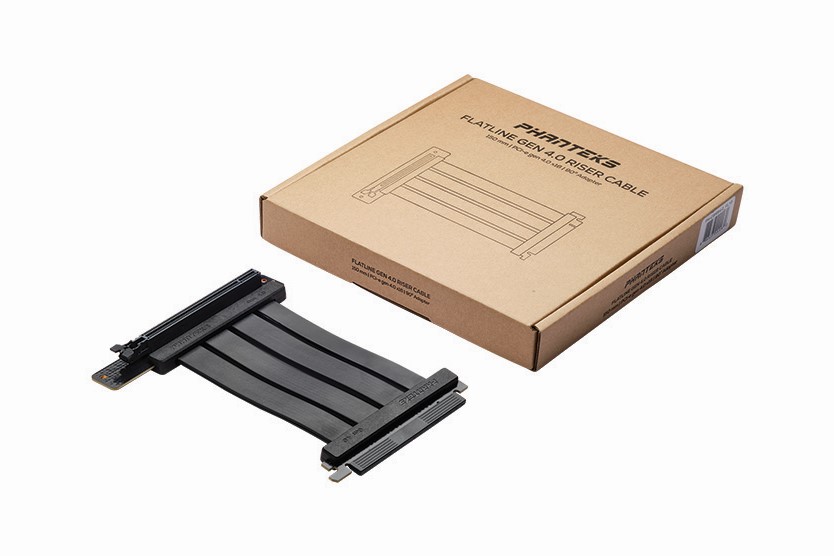

PHANTEKS 220mm 90 Degree Adaptor Flat Line PCIe Gen 4 Riser Cable (PH-CBRS4.0_FL22)

₹9,699

5,299

You Save : ₹4400 (45%)

Offer ends in...

Brand Phanteks
Availability Out Of Stock

The Phanteks Flat Line PCI-e Gen4 x16 Riser Cable unlocks the full potential of any high-end Gen4 graphics card. The dual layer design improves the performance and stability of the high bandwidth signals ensuring the system is running stable and reliable.


The Phanteks Flat Line PCI-e Gen4 x16 Riser Cable unlocks the full potential of any high-end Gen4 graphics card. The dual layer design improves the performance and stability of the high bandwidth signals ensuring the system is running stable and reliable. Each individual laneway is shielded from EMI/EFI interference to prevent interference between channels to further improve signal integrity.

Features

Phanteks Vertical GPU Riser Extender PCI 4.0 220mm Feature 1

Unlock the Full Potential

  • Supports any high-end Gen4 graphics card
  • High stability and full PCle Gen4 x 16 speeds

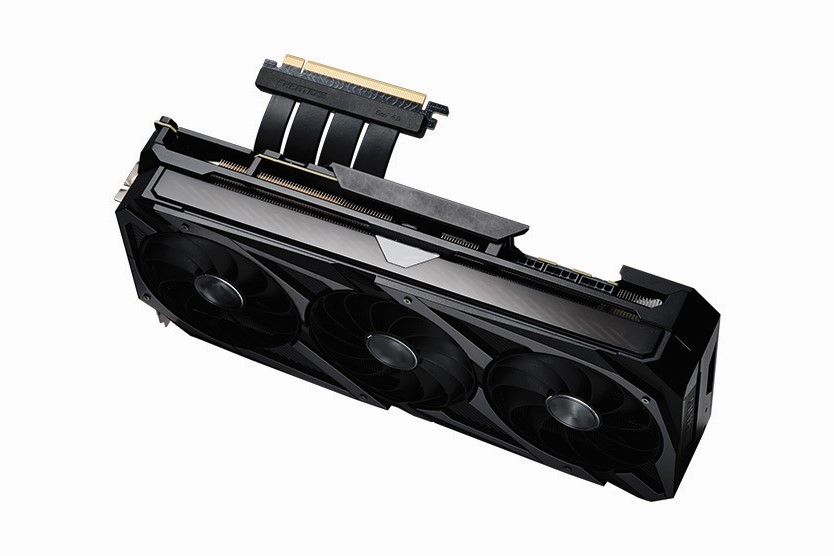

  • Vertically placed GPUS can improve airflow performance

Phanteks Vertical GPU Riser Extender PCI 4.0 220mm Feature 2

Designed for Stability

  • Dual layer design for high stability and full PCle Gen4 x 16 speeds
  • Individual laneway shielding to prevent external EMI/EFI and interference between channels

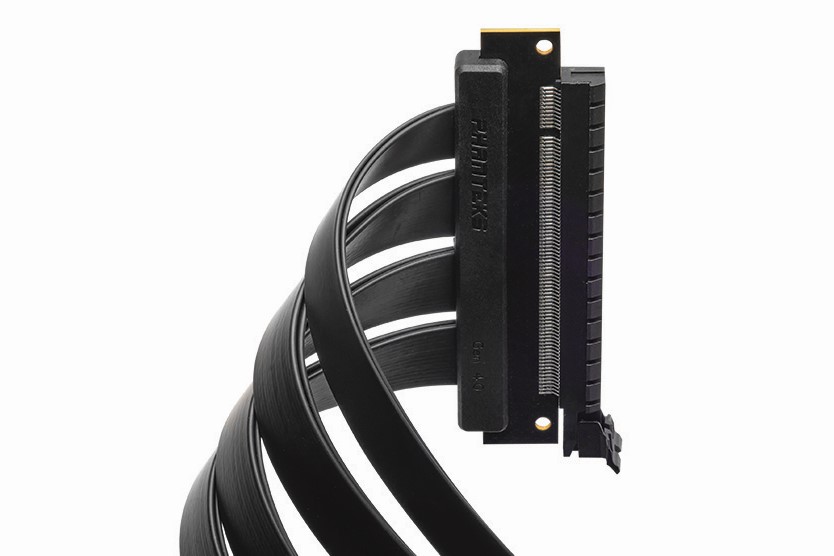

  • Flexible form factor allows for easier installation and orientation
  • Gold-plated connectors for long lasting performance



SPECIFICATIONS
Model Number PH-CBRS4.0-FL22
Chassis Support Evolv X, P500, P600, VGPU kit and future chassis
Application Vertical GPU riser extender
Length 220 mm / 8.66 in
Weight 92.2 gram
PCI-E Generation PCHE 4.0
Adapter Type 90 degrees
Operation Voltage / Current 12V / 5.5A
Wattage Throughput 66W
PCB / Wire UL Numbers E189572 / E252840
Warranty 2 Years Limited
