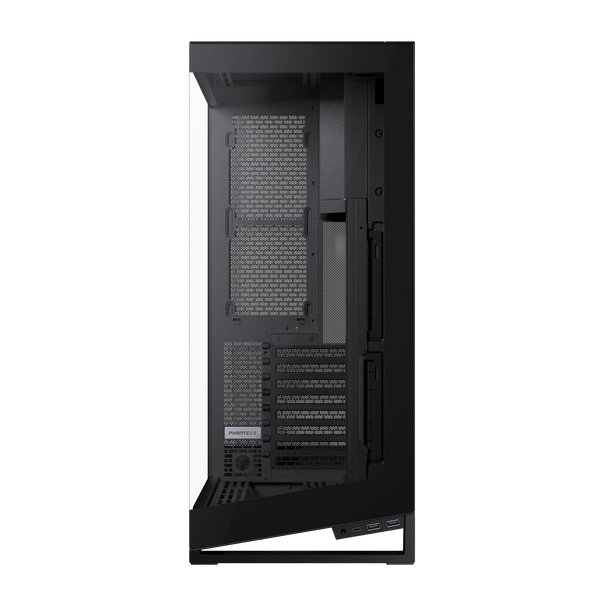

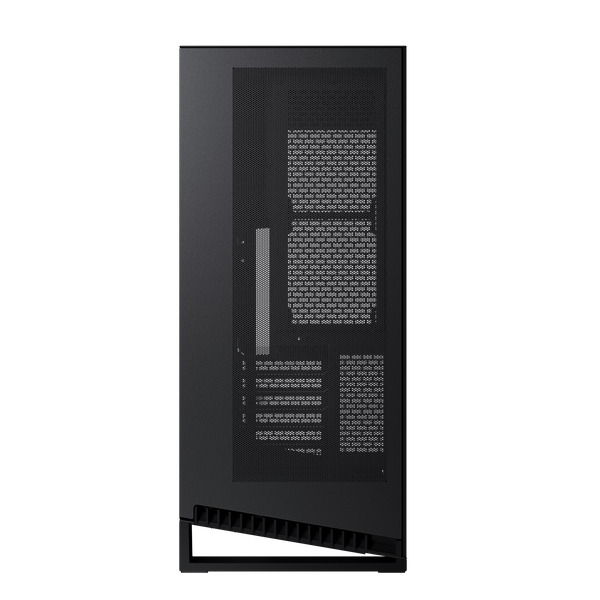

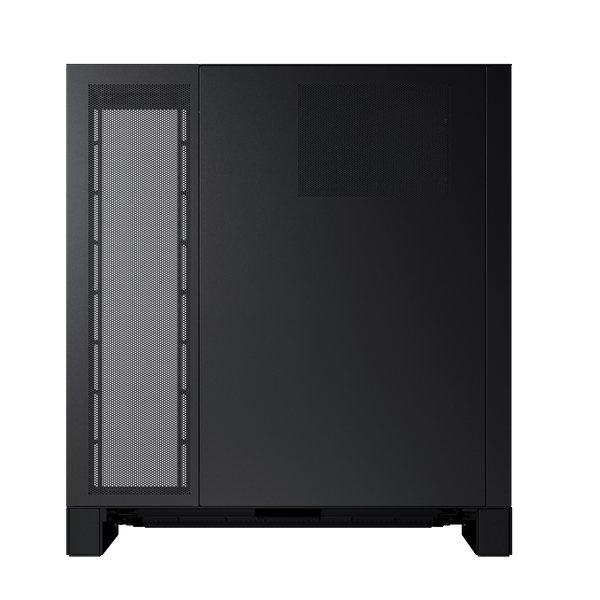

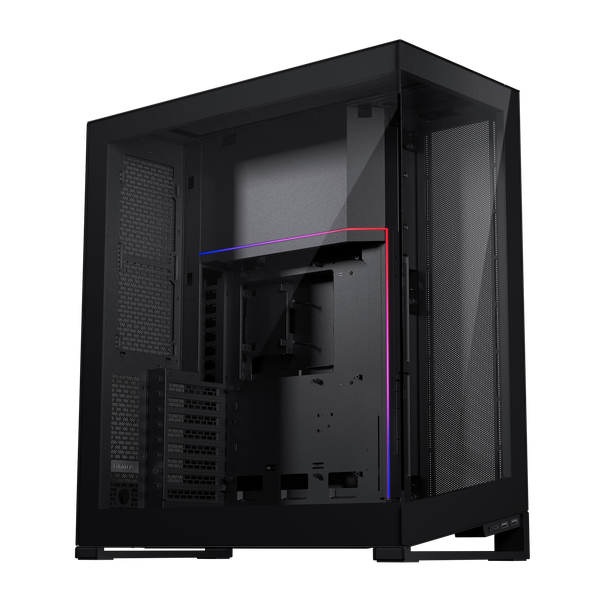

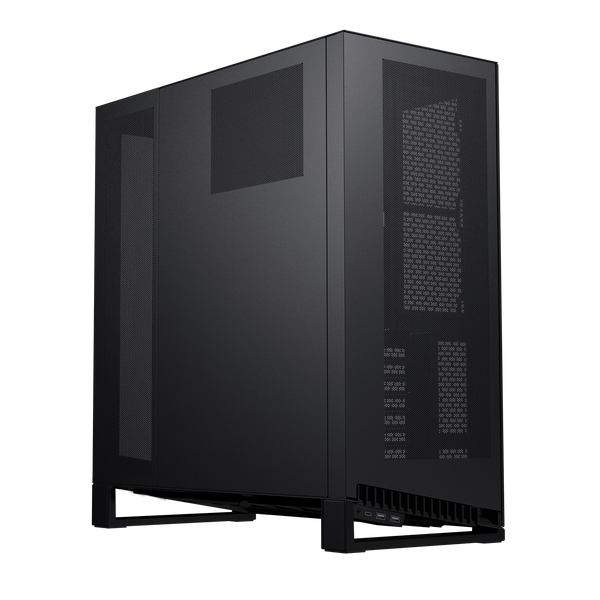

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the mainboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.

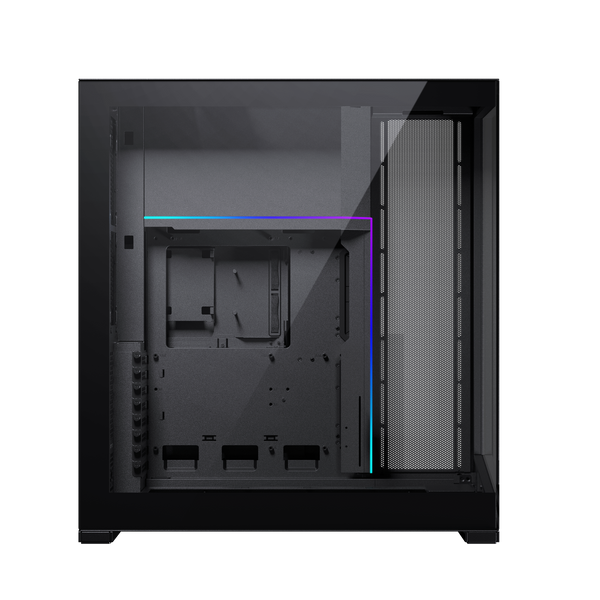

With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
| SPECIFICATIONS | |
| General | |
| Model No. | PH-NV723TG_DBK01 |
| Case Dimensions | 253 x 532 x 586 mm | 10.0 x 20.9 x 23.1 in |
| Form Factor | Full Tower |
| Mainboard Support | *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 277mm wide with LED Cover |
| Materials | Steel chassis | Tempered glass |
| Side Window | Yes |
| PCI Slots | 8 |
| Vertical GPU Support | 3-slots *Riser Cable sold separately |
| Internal 2.5″ Bay | 6 + 1x 3.5″ HDD |
| Internal 3.5″ Bay | 2 + 2x 2.5″ SSD |

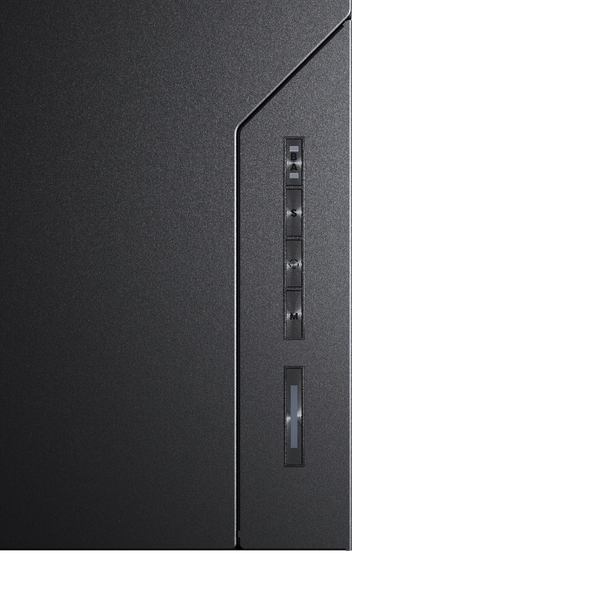

| Front I/O | 2x USB 3.0 USB-C Gen2 Microphone | Headphone Combo Power Button D-RGB Mode Button D-RGB Color Button D-RGB Speed Button D-RGB Channel Button |
| Fans | |
| Total Fans 120 mm | 140 mm |
12x | 3x |
| Top | 3x | – |
| Front | – | – |
| Side | 4x | – |
| Bracket | 2x | – |
| Rear | 3x | 3x |
| Radiators | |
| Top | Max. 360 | – |
| Front | – | – |
| Side | Max. 360 | – |
| Rear | 120 | – |
| Bottom | Max. 360 | 280 |
| Clearance | |
| CPU Cooler Height |
185 mm | 7.28 in |
| GPU Length |
450 mm | 17.71 in |
| Power Supply Length |
255 mm | 10.03 in |
| Top Radiator Length x Width |
132 x 440 mm | 5.19 x 17.32 in |
| Front Radiator Length x Width |
N/A |
| Side Radiator Length x Width |
132 x 440 x 65 mm | 5.19 x 17.32 x 2.55 in |
| Rear Radiator Length x Width |
132 x 320 mm | 5.19 x 12.59 in |
| Extra | |
| Net Weight | 16.90 kg | 37.25 lbs |
| Gross Weight | 19.70 kg | 43.43 lbs |
| Warranty | 5 Years limited |
| Scope of Delivery | 1x NV7 chassis |
| Accessory Box | 2x Airflow covers 1x Microfiber cloth 6x Zip ties 1x GPU support bracket |
| Screws | 34x Mainboard | SSD screws 4x Power supply screws 4x Thumb screws 12x Case screws 9x HDD screws 1x Motherboard stand-off 1x Stand-off removal tool 1x Extra R-side panel screw |
