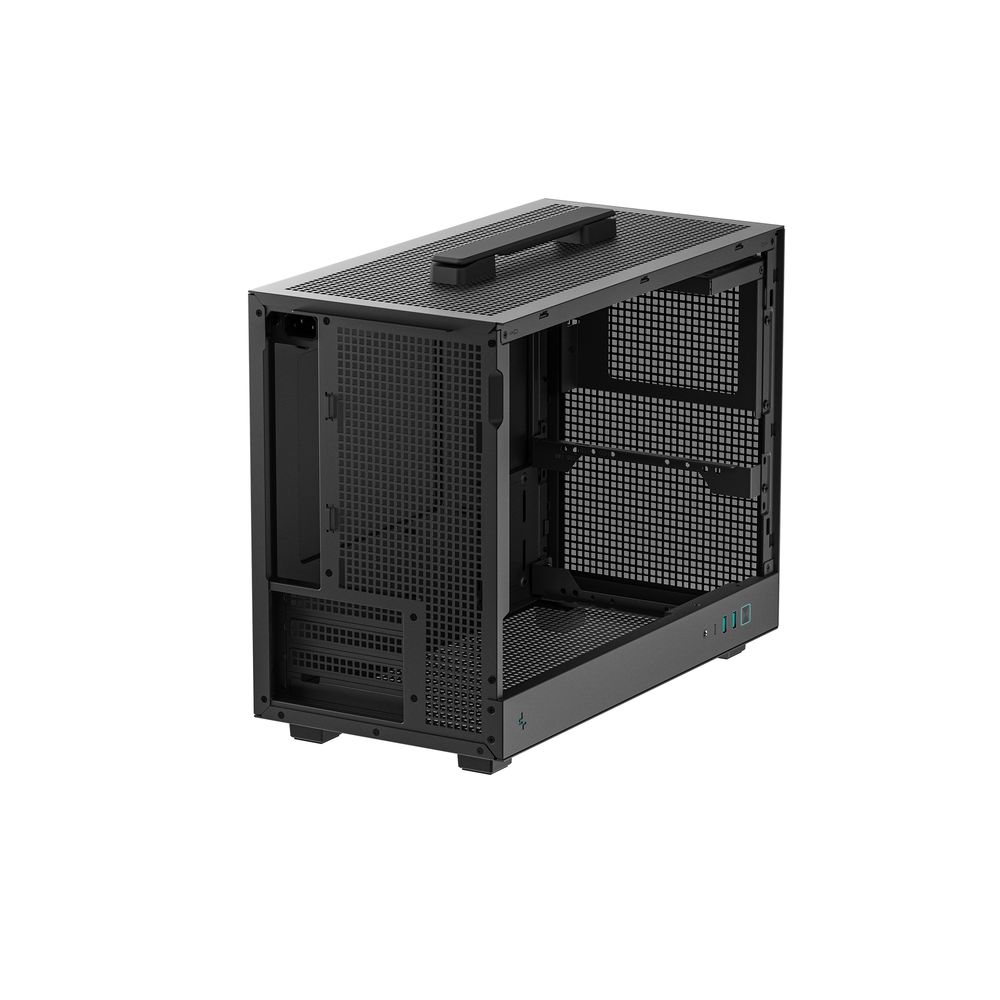

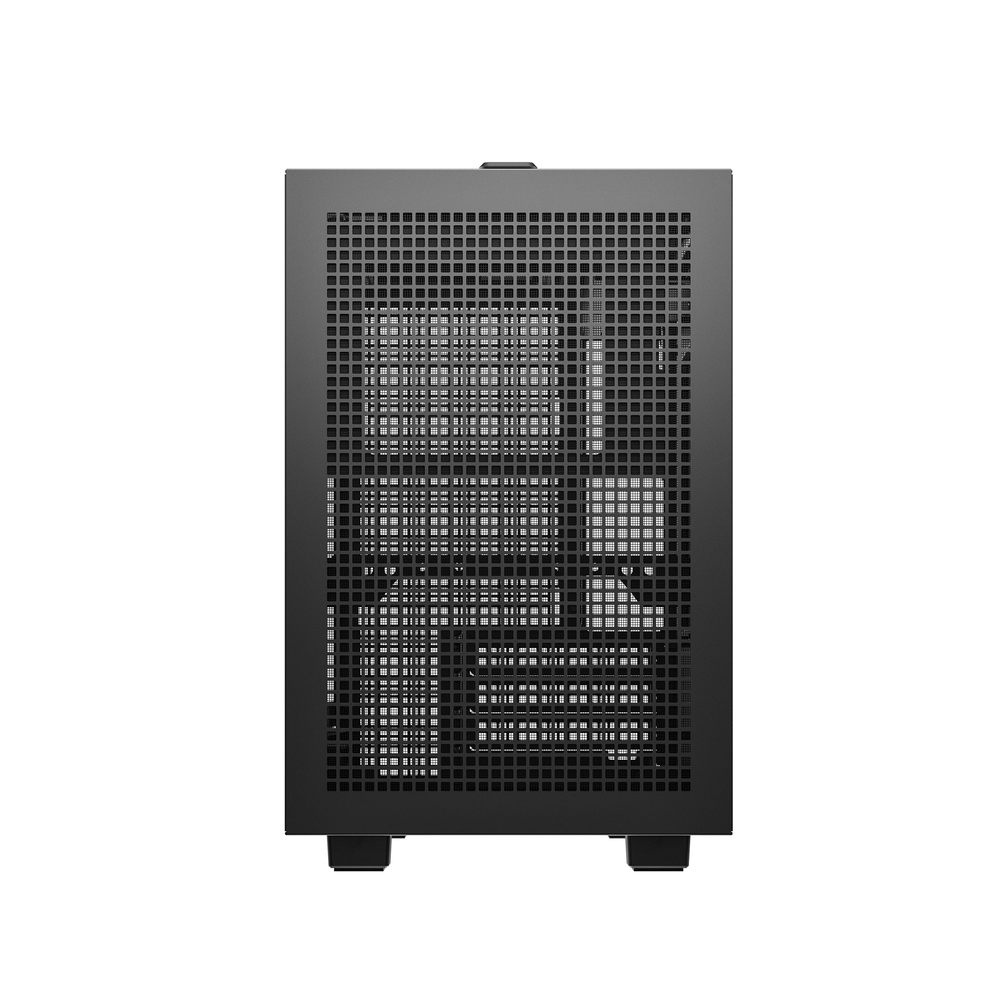

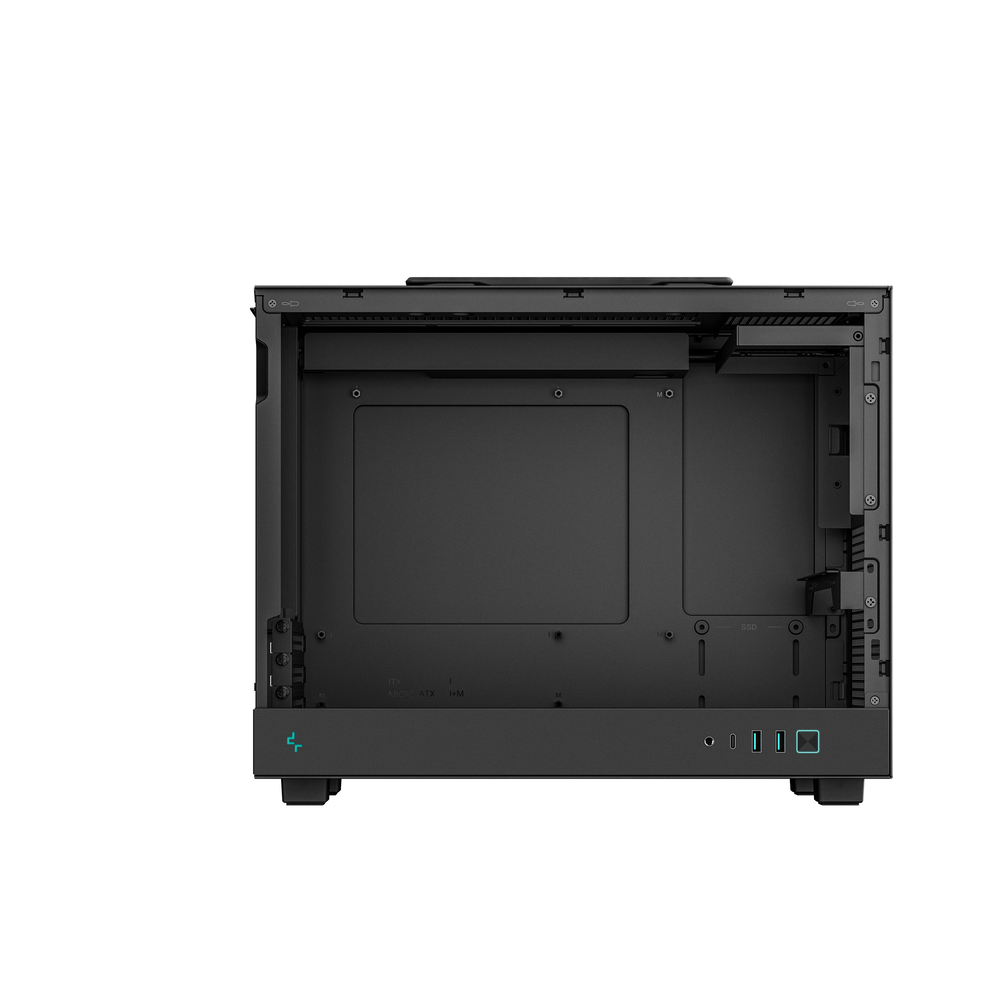

Deepcool CH160 Plus M-ATX Cabinet - Black

₹9,999

5,790

You Save : ₹4209 (42%)

Offer ends in...

Brand Deepcool
Availability Out Of Stock

The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.


CH160 PLUS

COMPACT EVOLVED

BUILT TO BREATH

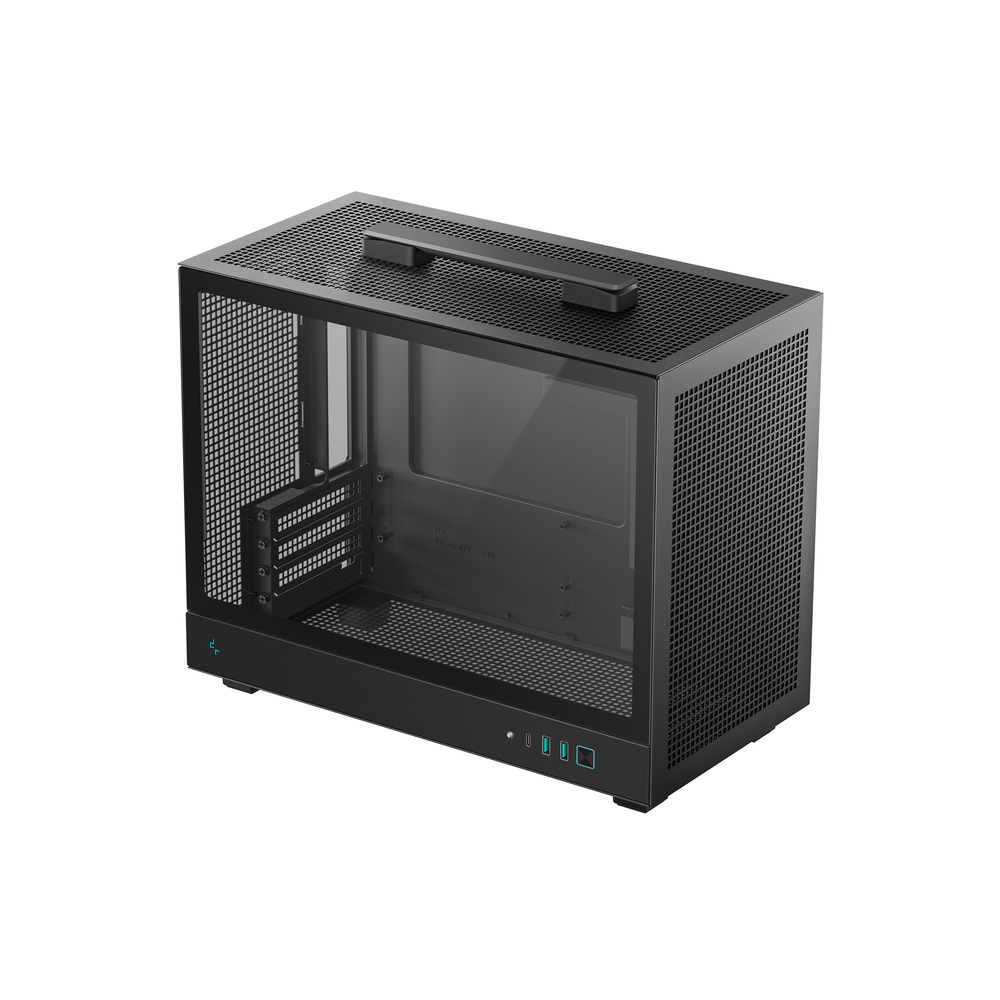

Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.

NOW WITH LIQUID COOLING!

Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.
CPU Cooler:
164mm
Radiators:
Front: NA
Top: 120/240mm
Bottom: NA
Rear: 120mm
Fans:
Front: 1×120mm / 1×140mm (with SFX PSU)
Top: 2×120mm
Rear: 1×120mm

BUILT TO FIT MORE

With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.

CUSTOMIZE WITH PURPOSE

Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

CONVENIENCE IN EVERY DETAIL

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.

SPECIFICATIONS
Product Dimensions 375mm*195mm*323.5mm(L×W×H)
Net Weight 4.2Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX
Front I/O Ports USB3.0×2, Gen2 Type-C x1, Audio/Mic×1
3.5" Drive Bays 1
2.5" Drive Bays 1+1
Expansion Slots 4Slots
Pre-Installed Fans None
Fan Support Front:1×120mm/1×140mm (With SFX PSU)
Top:2×120mm
Rear: 1×120mm
Radiator Support Front: NA
Top:120/240mm
Bottom: NA
Rear:120mm
CPU Cooler Height Limit 164mm
GPU Length Limit 342mm
Power Supply Type ATX PS2 (maximum length: 140mm)/SFX/SFX-L
P/N R-CH160-BKNGM0-G
