Deepcool CH170 Plus M-ATX Cabinet - White

₹9,999

5,799

You Save : ₹4200 (42%)

Offer ends in...

Brand Deepcool
Availability Out Of Stock

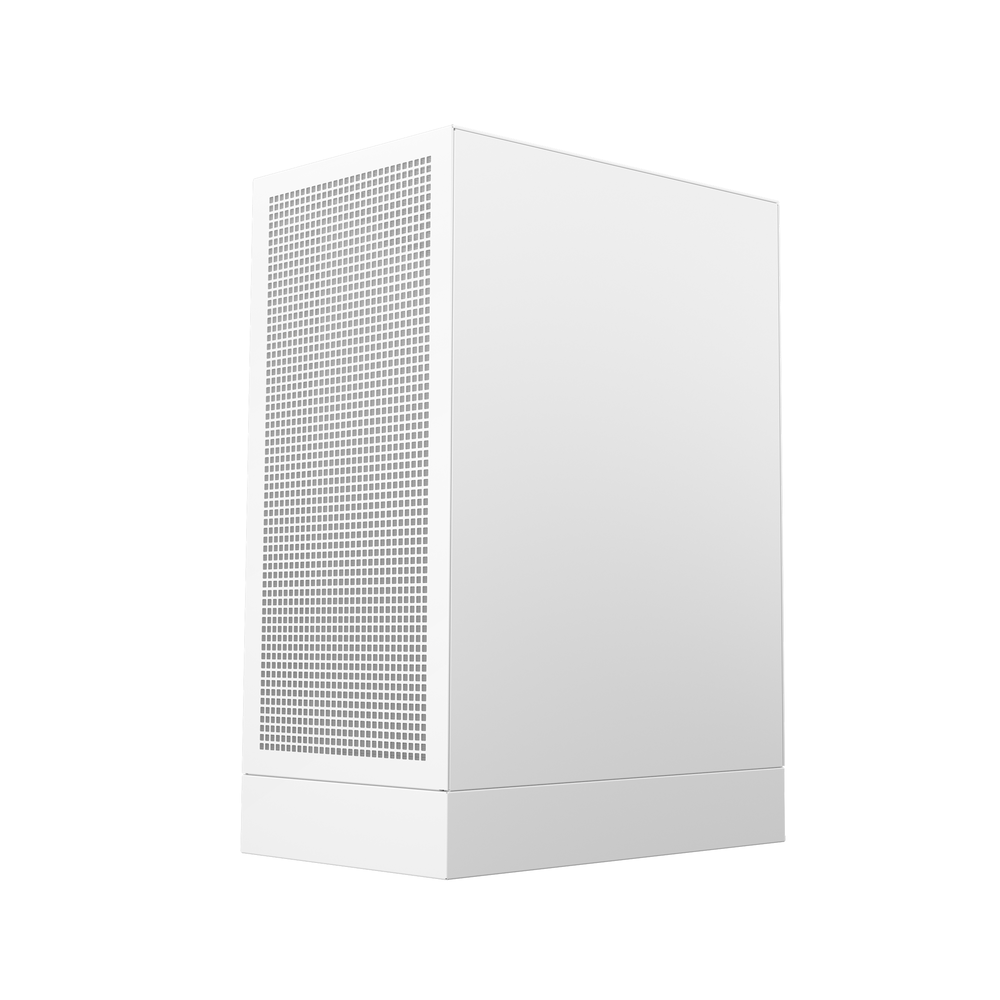

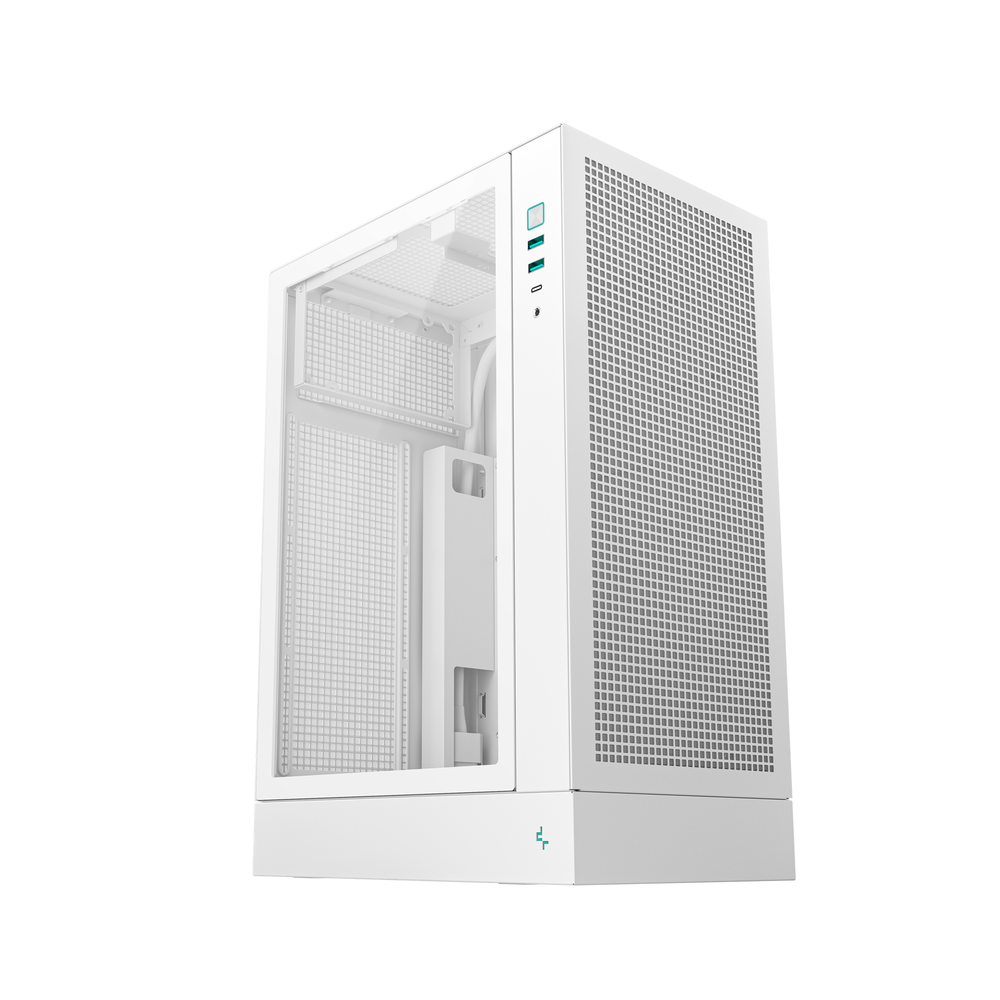

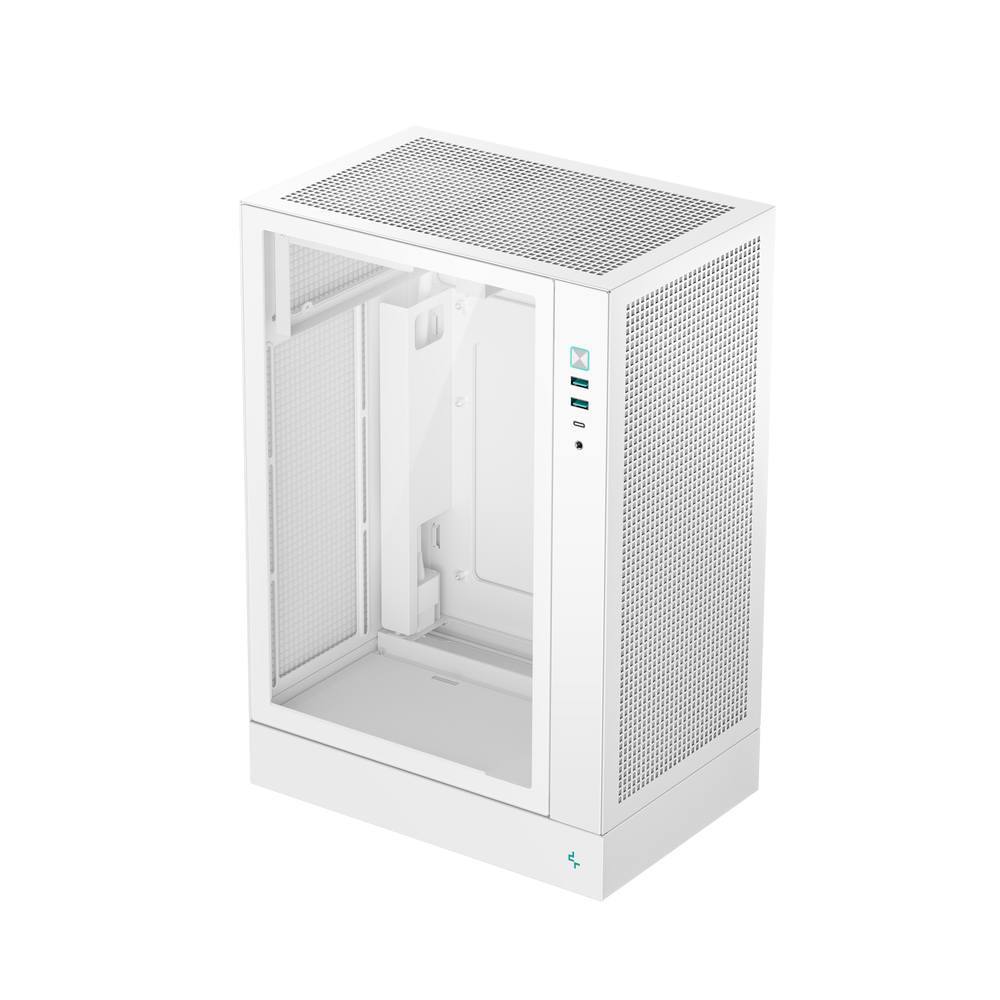

The CH170 PLUS WH is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.


CH170 PLUS WH

COMPACT EVOLVED

BUILT TO BREATH

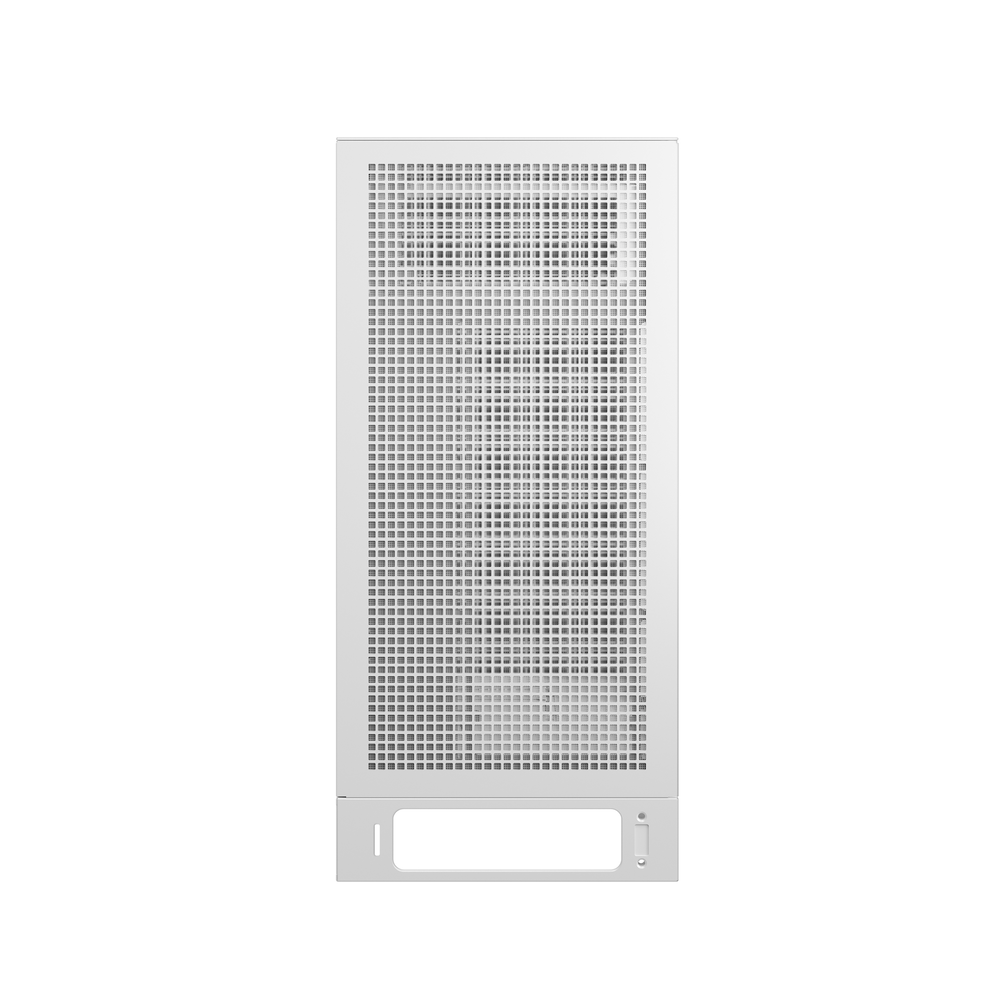

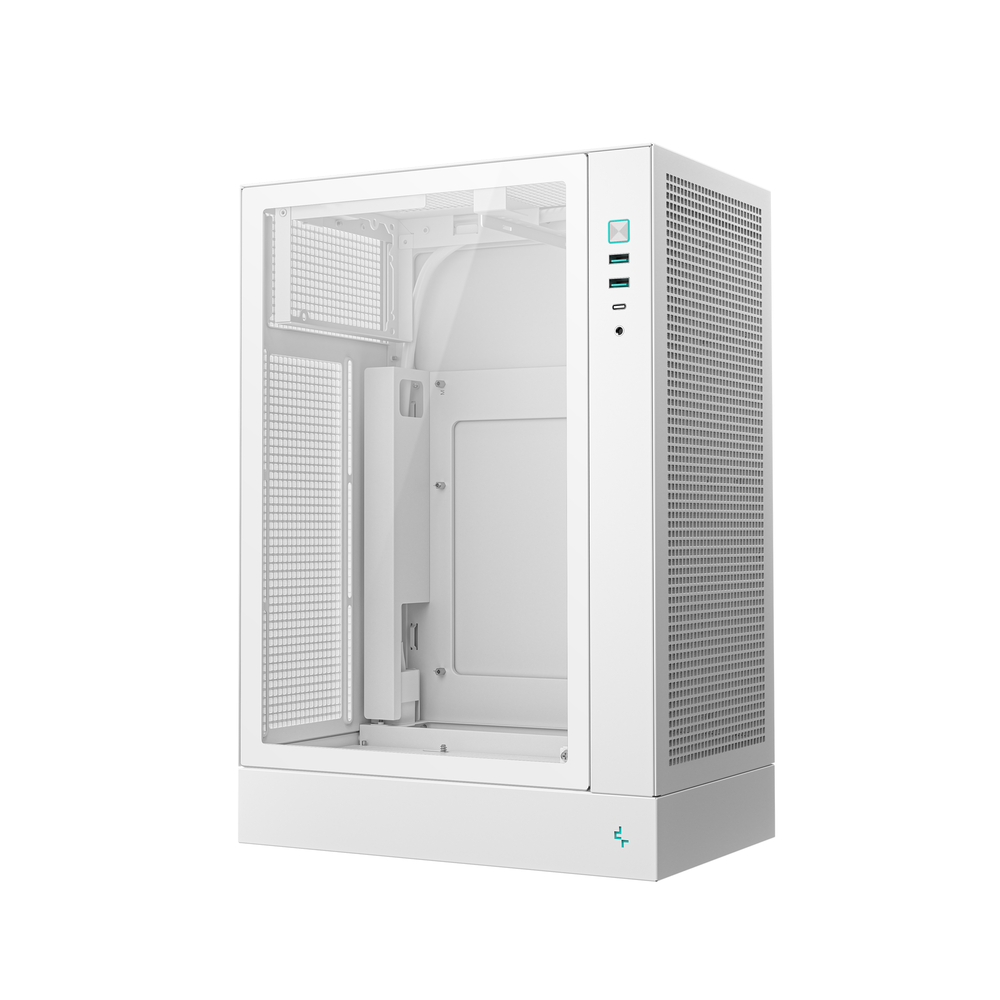

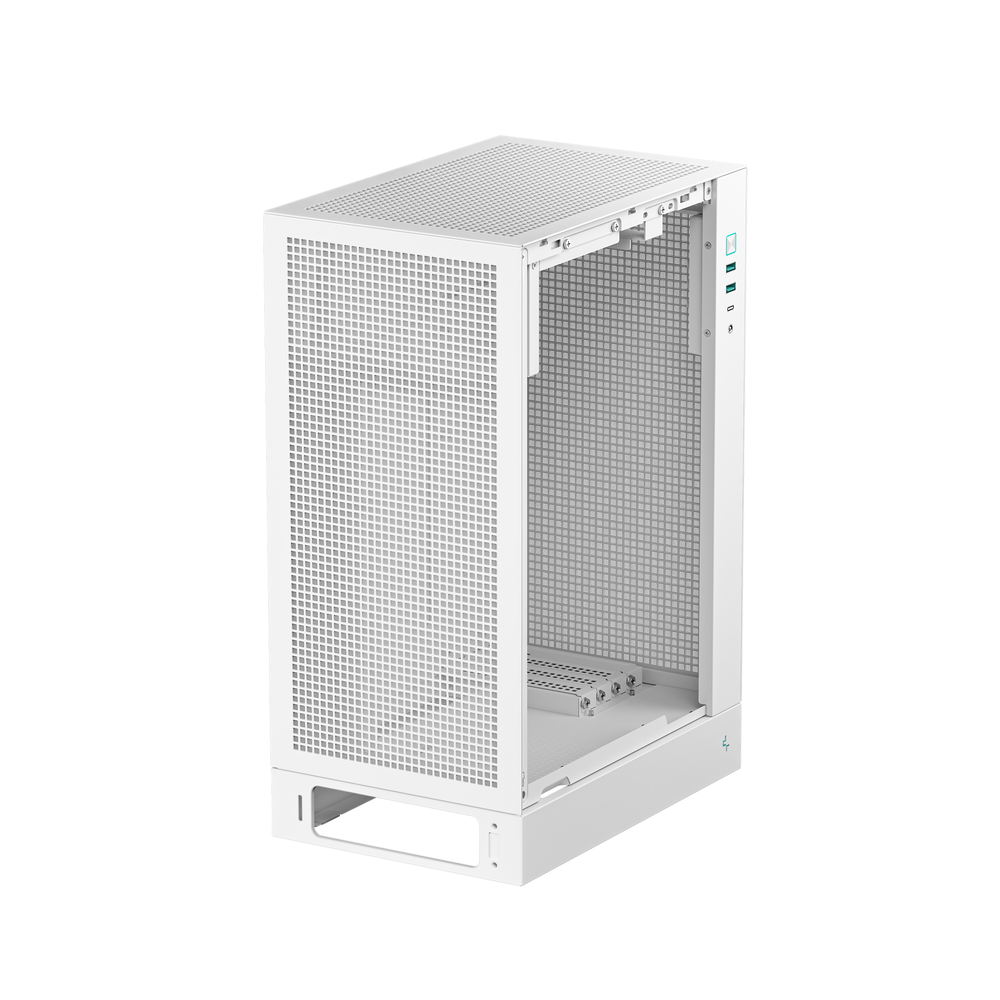

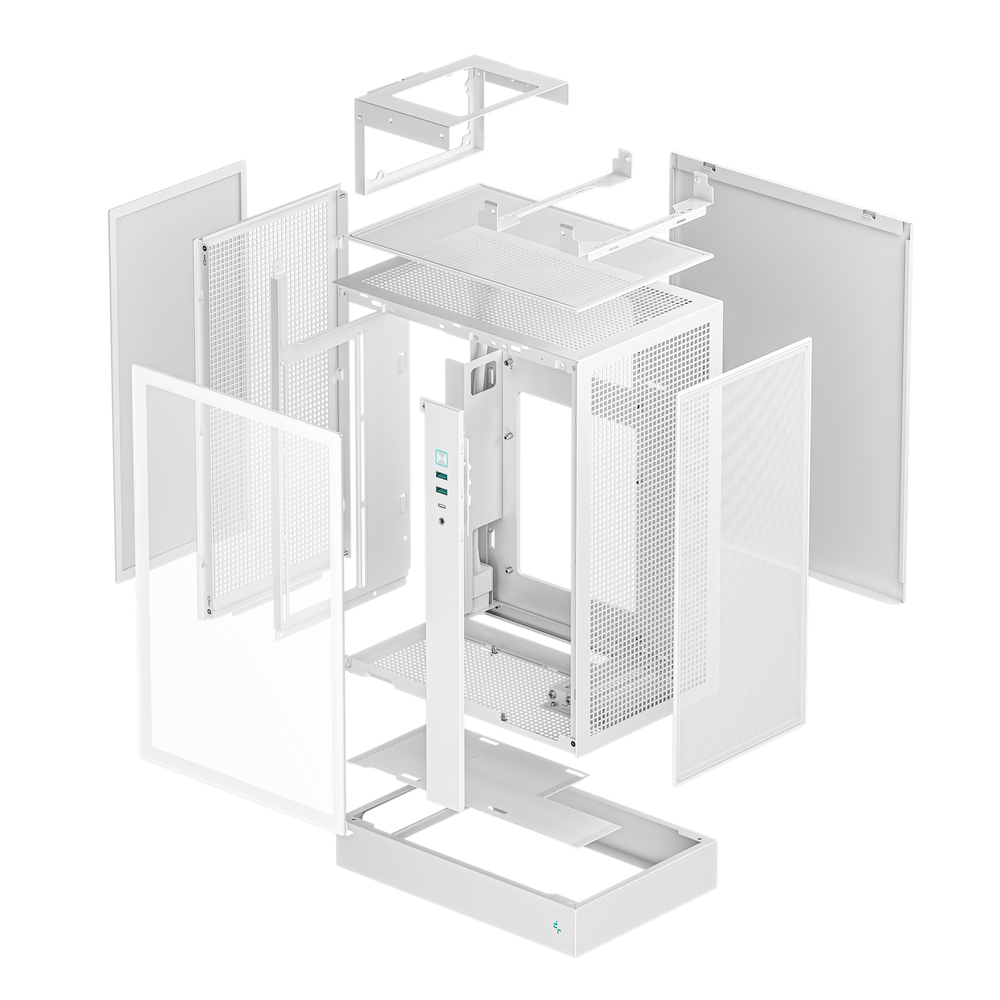

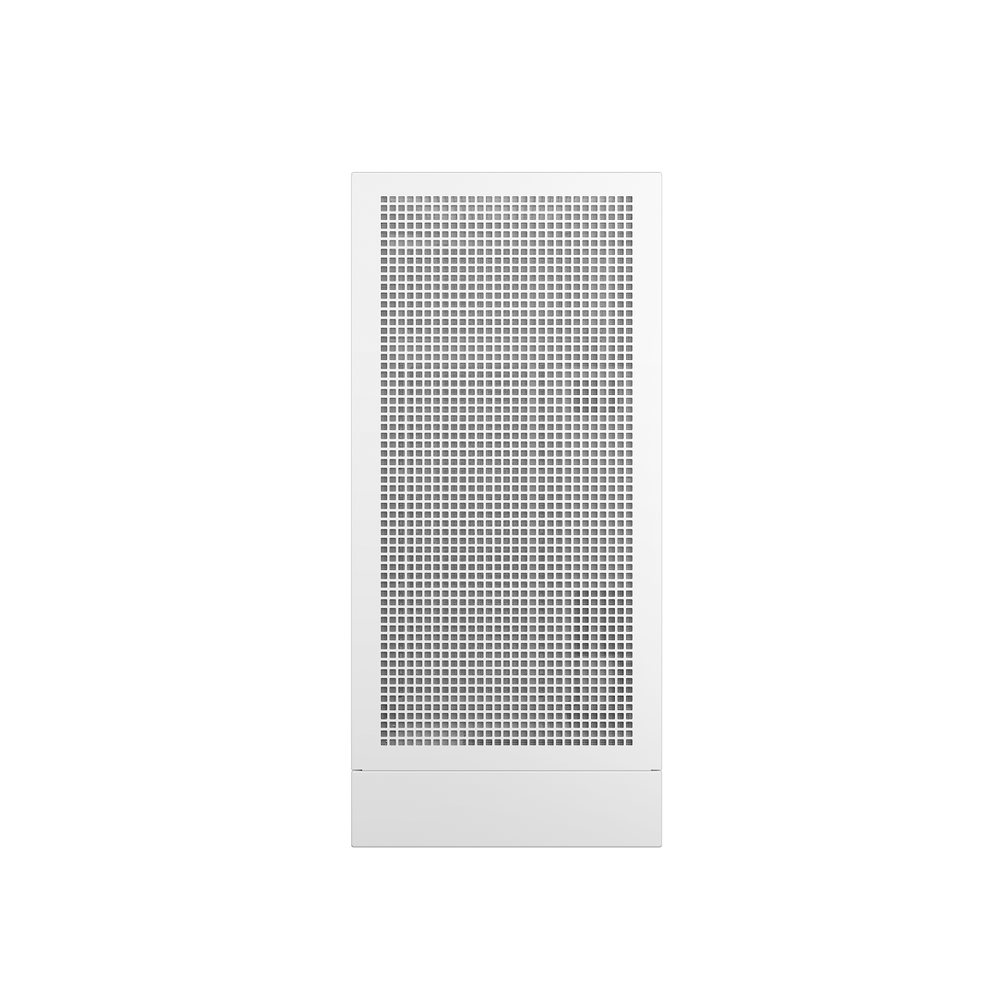

Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.

ROOM FOR BIGGER GPU

No matter your PSU choice, the CH170 PLUS WH supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.

FLEXIBLE POWER OPTIONS

Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS WH can support any of them up to 140mm.

COOLING THAT ADAPTS

From liquid to air, the CH170 PLUS WH supports a 240mm side radiator or up to four 120mm fans, with room for air coolers up to 164mm tall
CPU Cooler:
164mm
Radiators:
Front: NA
Side: 120/240mm
Bottom: 120mm
Fans:
Top: 1×120mm / 1×140mm (with SFX PSU)
Side: 2×120mm
Bottom: 1×120mm

CUSTOMIZE WITH PURPOSE

Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.


CONVENIENCE IN EVERY DETAIL

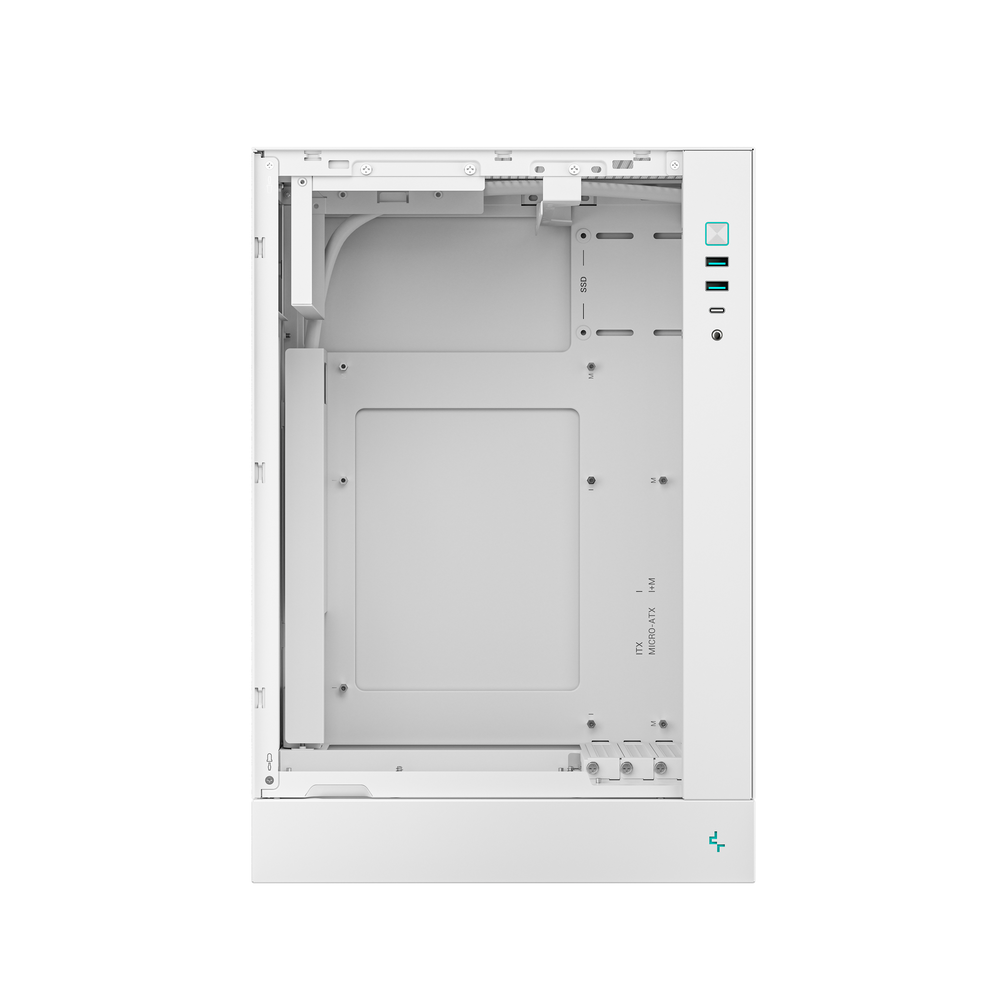

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.


SPECIFICATIONS
Product Dimensions 290mm*195mm*424.5mm(L×W×H)
Net Weight 4.4Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX
Front I/O Ports USB3.0×2, Gen2 Type-C x1, Audio/Mic×1
3.5" Drive Bays 1
2.5" Drive Bays 1+1
Expansion Slots 4Slots
Pre-Installed Fans None
Fan Support Top:1×120mm/1×140mm (with SFX PSU)
Side:2×120mm
Bottom: 1×120mm
Radiator Support Front: NA
Side:120/240mm
Bottom: 120mm
CPU Cooler Height Limit 164mm
GPU Length Limit 342mm
Power Supply Type ATX PS2 (maximum length: 140mm)/SFX/SFX-L
P/N R-CH170-WHNGM0-G
