₹9,699
8,690
You Save : ₹1009 (10%)
Offer ends in...

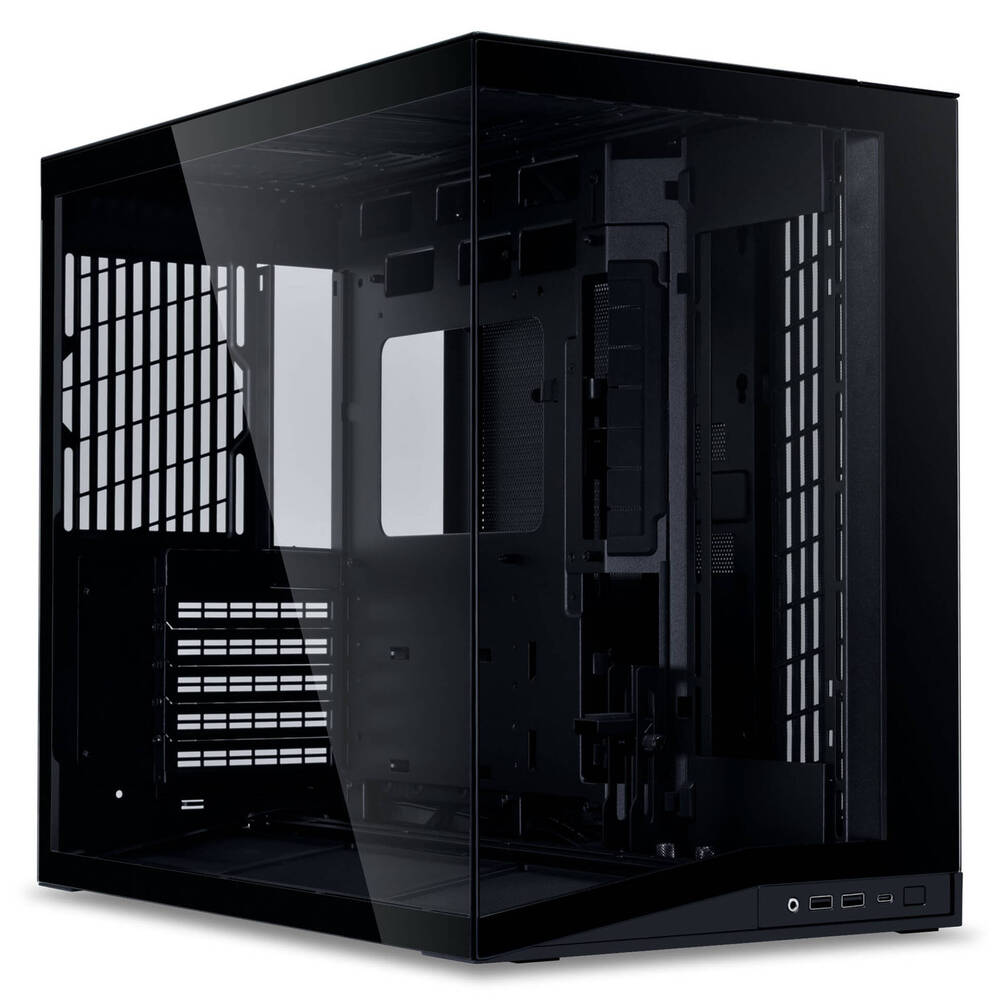

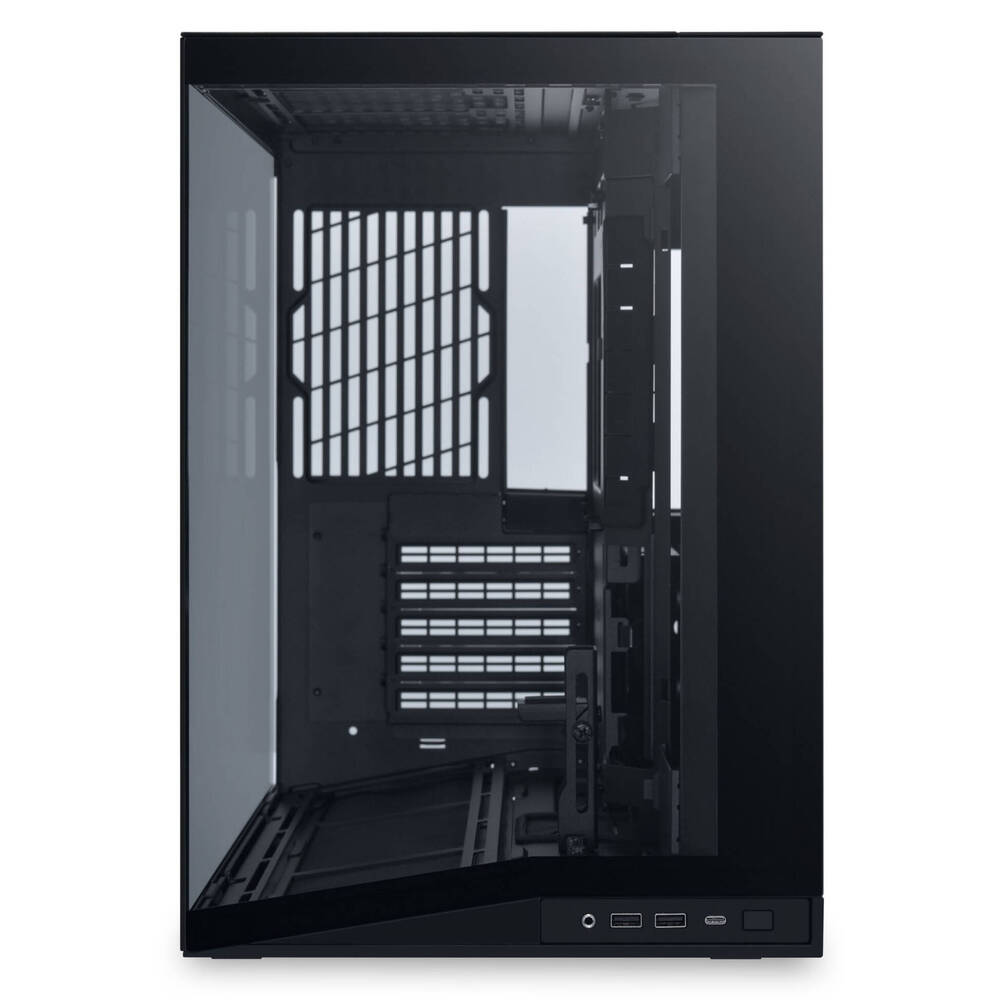

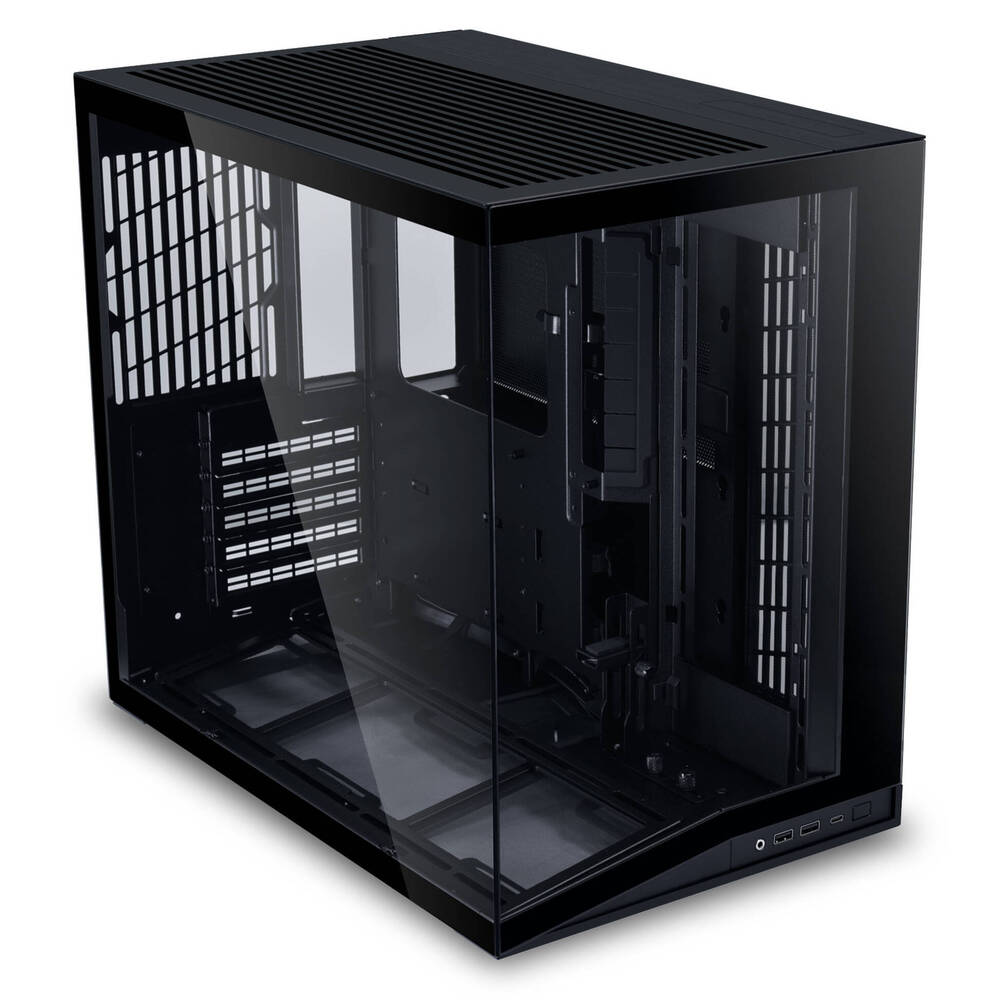

A compact chassis refined for serious performance, offering smart cooling, modular flexibility, and clean aesthetics in one sleek build.
 Extended Side Mesh for ATX PSU |
 10° Slanted Bottom |
Dual m-ATX Mounting Levels for AIO |
 5 Pre-Installed Reverse Blade Fans |
|
Optimized GPU Cooling |
Top or Bottom I/O Placement |
Adjustable Vertical GPU Bracket |
FOUR STYLISH OPTIONS, ONE PERFECT FIT
Available in black or white, with or without pre-installed fans. Four SKUs to match your build preferences.
 O11D mini V2 BLACK
|
 O11D mini V2 white
|
 O11D mini V2 Flow Black
|
 O11D mini V2 Flow White
|
SLIGHTLY BIGGER CASE, WAY MORE CAPACITY
Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow.
 |

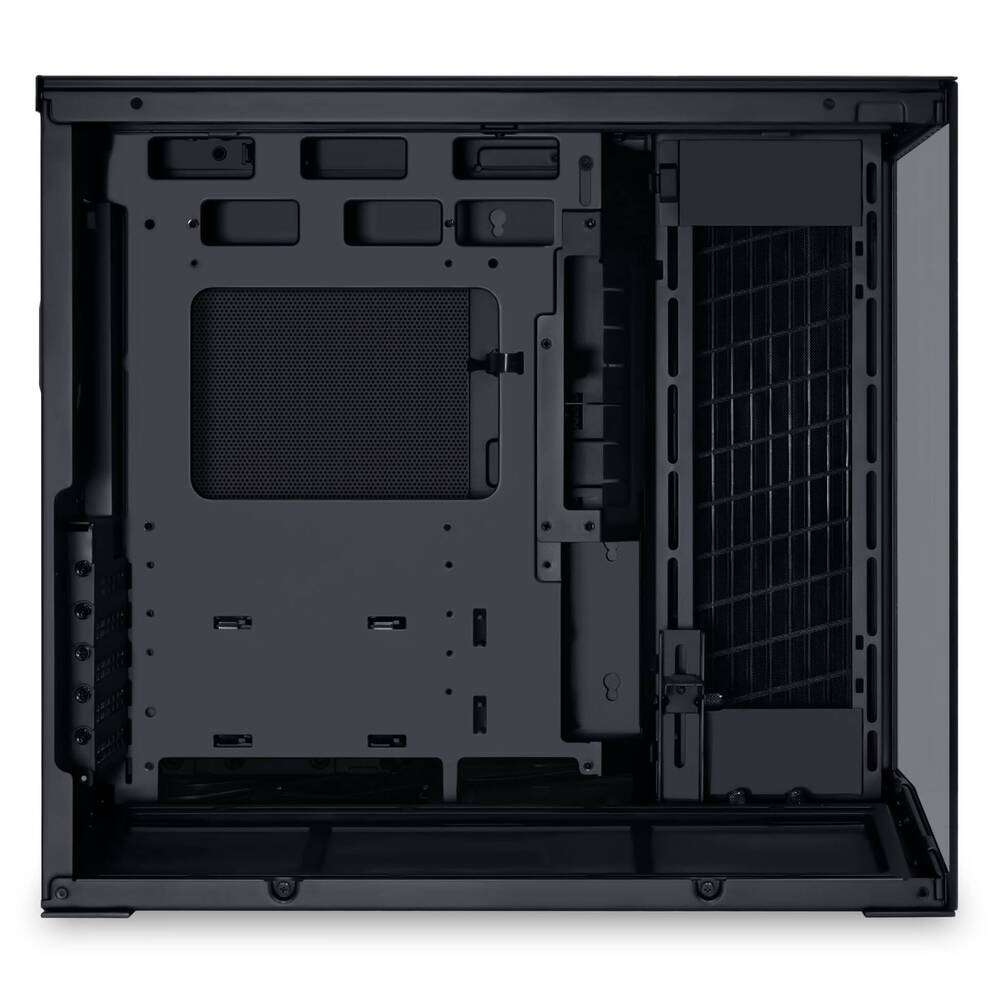

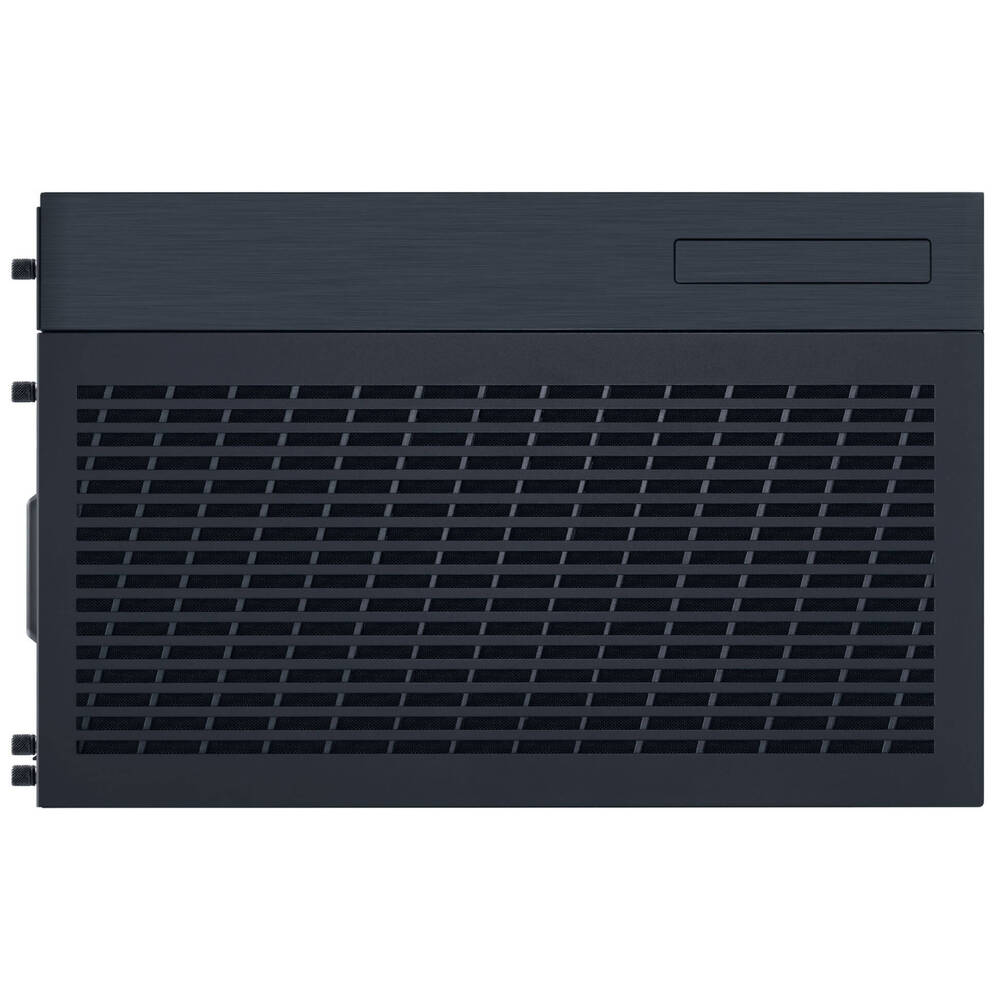

SIDE MESH EXTENSION FOR A LARGER PSU An extended side mesh design accommodates ATX PSUs up to 200mm without increasing the case width. Note: Ensure the PSU’s power socket is at least 12 mm from the edge for a proper fit. |
ATX BACK-CONNECT MOTHERBOARD SUPPORT
The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.
Important Notice: Typical ATX motherboards with an NVMe M.2 between the CPU and first PCIe slot are generally compatible as they will line up with PCIe slot 2. The O11D Mini V2 has only 5 PCIe slots due to a compact design, so motherboards with the PCIe slot directly under the CPU will need to use the included vertical GPU mount for installation, and a 200mm riser cable (sold separately). All m-ATX and ITX motherboards are compatible, as the standoffs can be moved down by one PCIe slot.
 |
To improve compatibility at the 24-pin connector area with different back-connector motherboards, the O11D MINI V2 provides an optional replacement bracket. If users encounter clearance issues, the bracket can be requested here. |
ANGLED BASE FOR DIRECT GPU AIRFLOW
A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.
THE FLOW EDITION IS PRE-INSTALLED WITH FIVE REVERSE-BLADE FANS

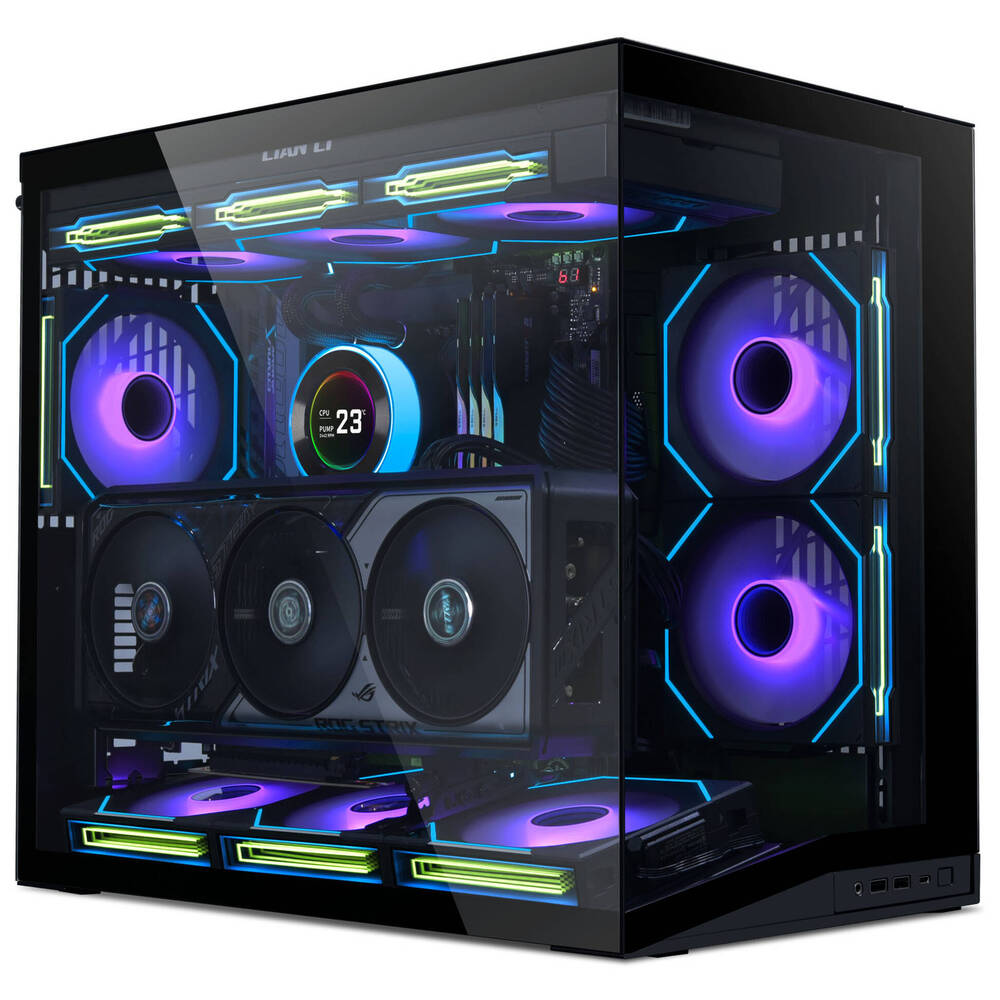

Flow versions come with five reverse blade PWM fans—three at the bottom and two on the side, for strong, silent airflow right out of the box.
Powered by PPLP Info
OPTIMIZED FOR GPU COOLING
The slanted bottom design and pre-installed fans channel airflow directly to the GPU, enhancing cooling efficiency. In thermal testing under identical noise levels, the O11D MINI V2 FLOW achieved significantly better GPU thermals, registering a 3.1°C improvement over the LANCOOL 207, or approximately 6% better GPU cooling performance.
Thermal Test
CPU simulated @350W
GPU simulated @400W
CPU Cooler: Scythe Orochi paired with one Noctua A12x25 SL-PWM fan running at 1200RPM
ADJUSTABLE MOTHERBOARD STANDOFFS FOR RADIATOR FLEXIBILITY
This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models.
Note: Please note that the GALAHAD II Trinity Performance is not compatible with O11D MINI V2
Note: When using M-ATX motherboards with graphics card mounted on the second slot, graphics card thicker than 72mm may interfere with bottom fans.
PREPPED FOR PERFORMANCE, BUILT FOR EASE
Install fans or radiators outside the case, then drop in the entire bracket, simplifying the build process. The removable design also integrates a dust filter, keeping your system clean while making maintenance easy.
Blue: Top fan/radiator bracket is removable, making top-side installation and cable routing much easier.

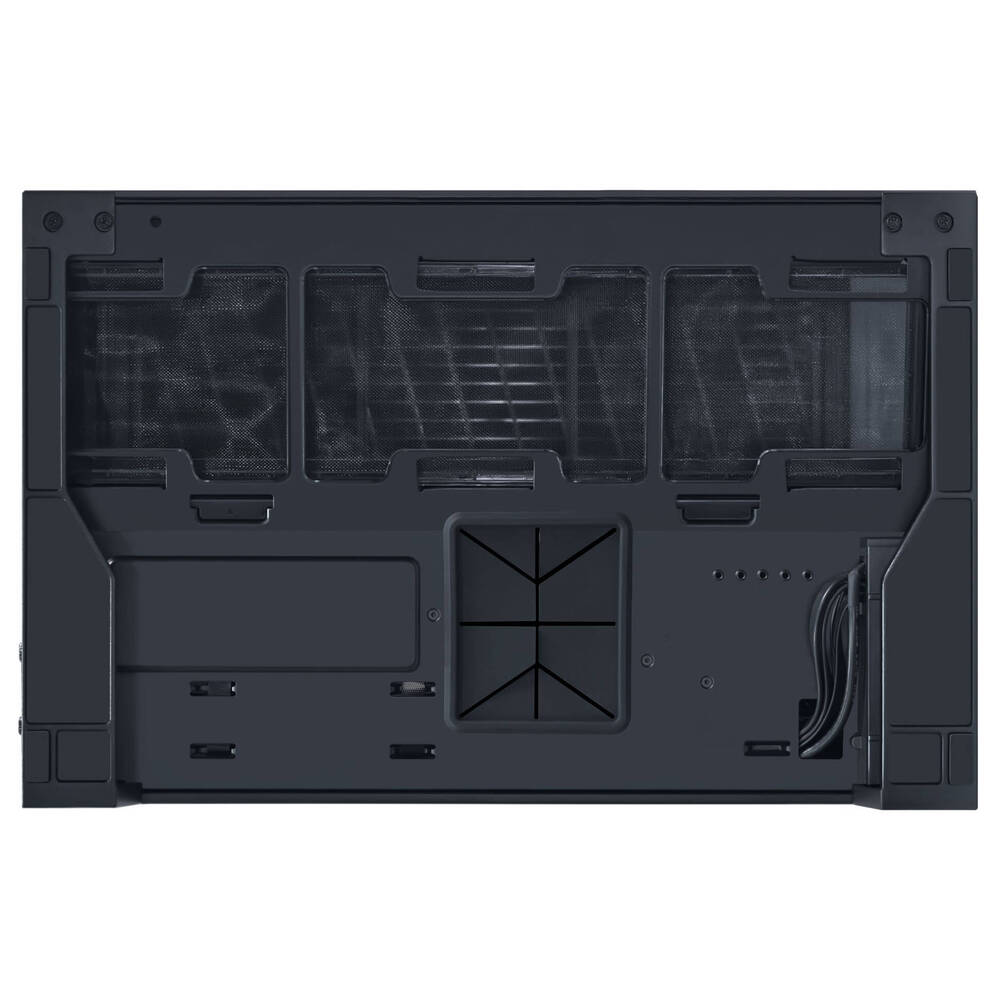

Orange: The bottom dust filter can be quickly removed from the rear for convenient maintenance and long-term system cleanliness.
Green: Both the top panel and the right side panel feature built-in mesh filters for effortless dust protection. No installation or removal required.
AIRFLOW COVERS FOR PREVENTED PRESSURE LEAK
Tool-less fan cover brackets help seal off unused fan mounts, concentrating airflow where it matters most.
TOP OR BOTTOM I/O FOR FLEXIBLE SETUP
The I/O module supports top or bottom placement, offering flexibility for various build layouts and desk arrangements.
 |
 |
 |
IMPROVED AIRFLOW AND PORTABILITY WITH REMOVABLE BOTTOM I/O AND COVER With the I/O module relocated to the top, the lower I/O and cover can now be removed to enhance bottom intake airflow. An optimization aimed at improving thermal efficiency and ease of transport. |
Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation.
ADJUSTABLE ANTI-SAG BRACKET FOR VERTICAL GPU
The vertical GPU support bracket features height adjustment to accommodate thick cards and prevent GPU sag.
BUILT-IN 24-PIN CABLE BRACKET FOR A CLEAN, PROFESSIONAL LOOK
This case comes with a built-in cable bracket that holds the 24-pin ATX power cable firmly in place, keeping it aligned and secure. This reduces strain on the connector and helps maintain a neat, organized appearance.
 (Without using 24-pin cable bracket) |
 (Using 24-pin cable bracket) |
Thoughtfully positioned for different assembly zones, our cable straps make cable routing simpler and cleaner, even in tight spaces. Whether you’re a first-time builder or a seasoned pro, this smart design ensures a faster, neater, and more enjoyable building experience.

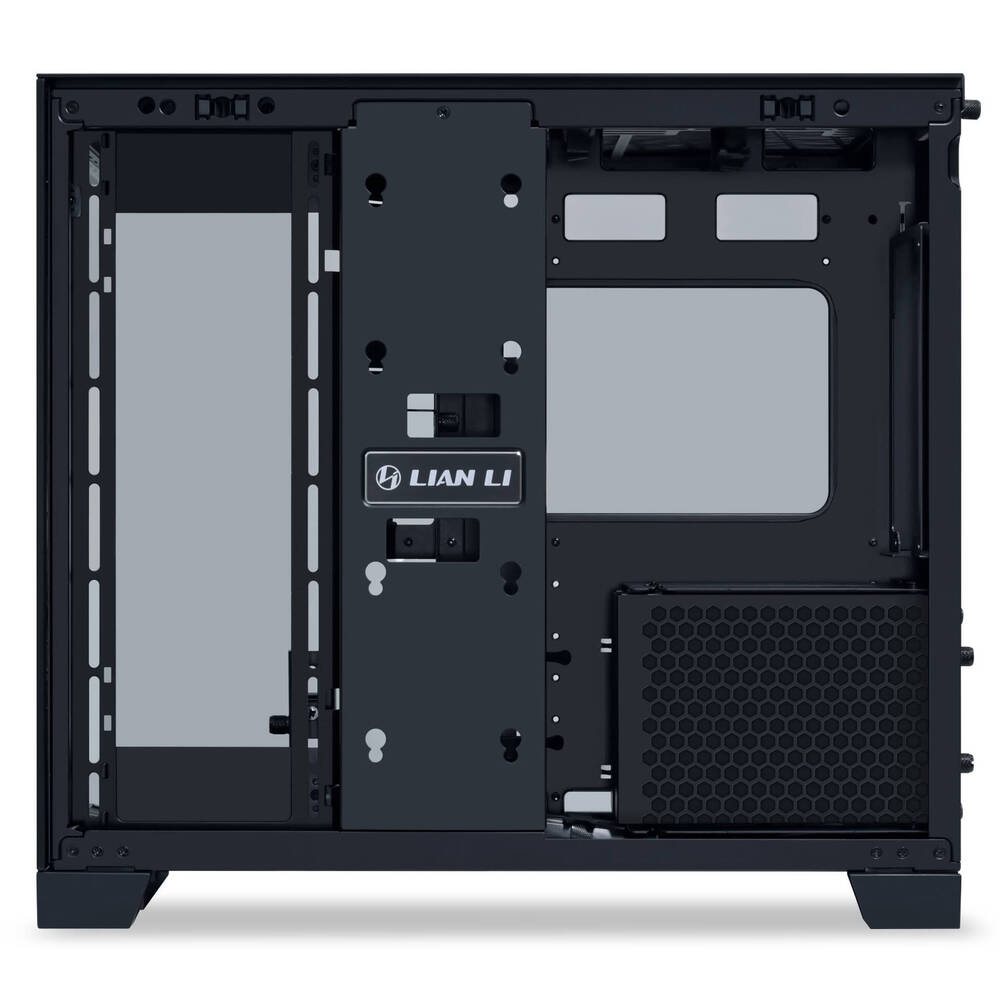

DUAL-PURPOSE DRIVE CAGES WITH CABLE STORAGE
Dual-purpose drive cages accommodate 2.5″ and 3.5″ HDDs or offer dedicated space for cable management, ensuring a clean and tidy build.
DESIGNED FOR TIGHT SPACES, BUILT FOR AESTHETIC EXCELLENCE
Engineered to maximize clearance in compact setups, the bottom cable grommets provide optimized pathways for your cables, ensuring functional flexibility and a seamless, uncluttered build aesthetic.
ALUMINUM FEET FOR STABILITY AND STYLE
Machined aluminum feet enhance case stability while contributing to a refined overall aesthetic.
 |
 |
INCLUDED ACCESSORIES
 |
 |
| SPECIFICATIONS | |
| PRODUCT NAME | O11D MINI V2 |
| MODEL NO. | O11DMIV2X |
| COLOR | BLACK |
| DIMENSIONS | 423.6mm x 273.3mm x 391.95mm (DxWxH) |
| MATERIALS | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass |
| MOTHERBOARD SUPPORT | Back-Connect ATX ATX / Micro-ATX / Mini-ITX |

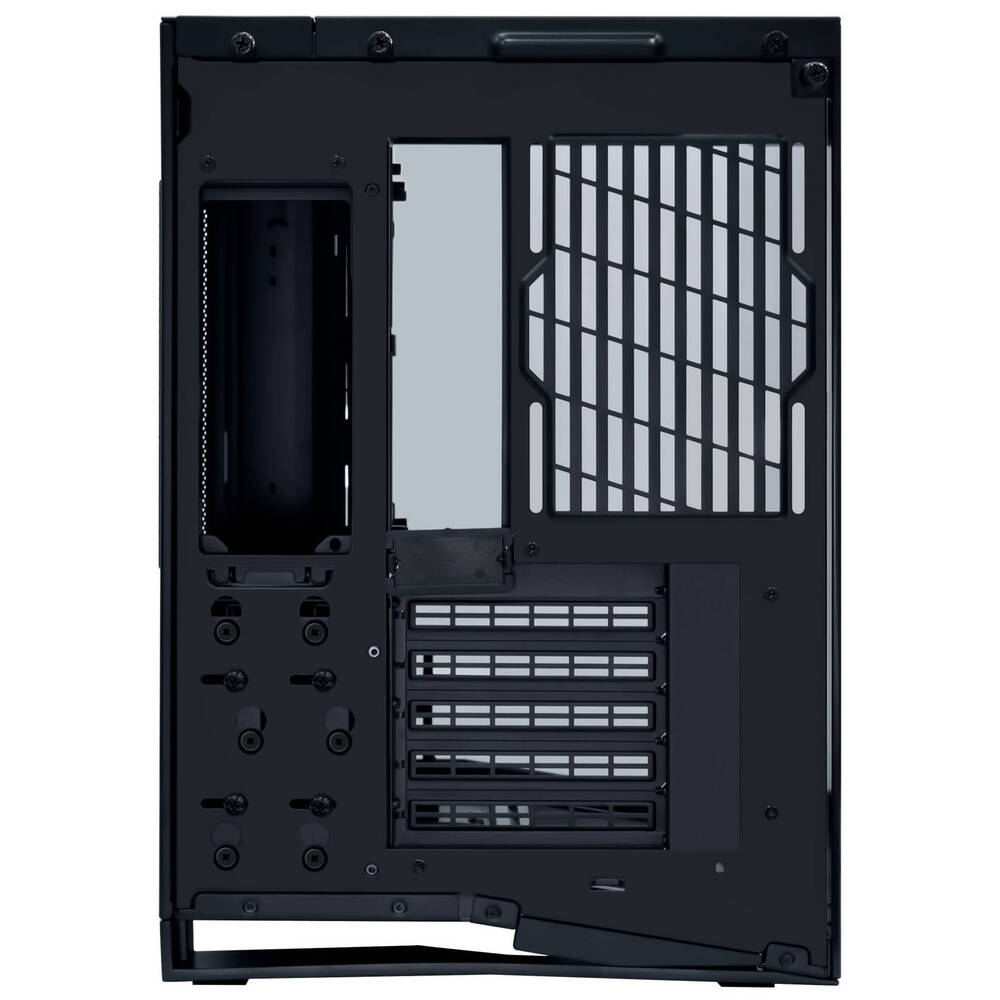

| EXPANSION SLOT | 5 |
| STORAGE | Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2 Behind MB Tray: 2.5″ SSD x 2 |
| GPU LENGTH CLEARANCE | 400 mm |
| CPU COOLER HEIGHT CLEARANCE | 160 mm |
| PSU SUPPORT | ATX (Under 200mm) |
| RADIATOR SUPPORT | Top: 240mm / 280mm / 360mm (Note: 280mm radiator requires mounting motherboard one slot lower) Side: 240mm |
| FAN SUPPORT | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 2 Bottom: 120mm x 3 Rear: 120mm x 1 |
| INCLUDED FANS | N/A |
| DUST FILTER | Bottom x 1 |
| I/O PORTS | USB 3.0 x 2 USB 3.2 Type C x 1 Audio x 1 Power Button x 1 |
| WARRANTY | 1 Year |
