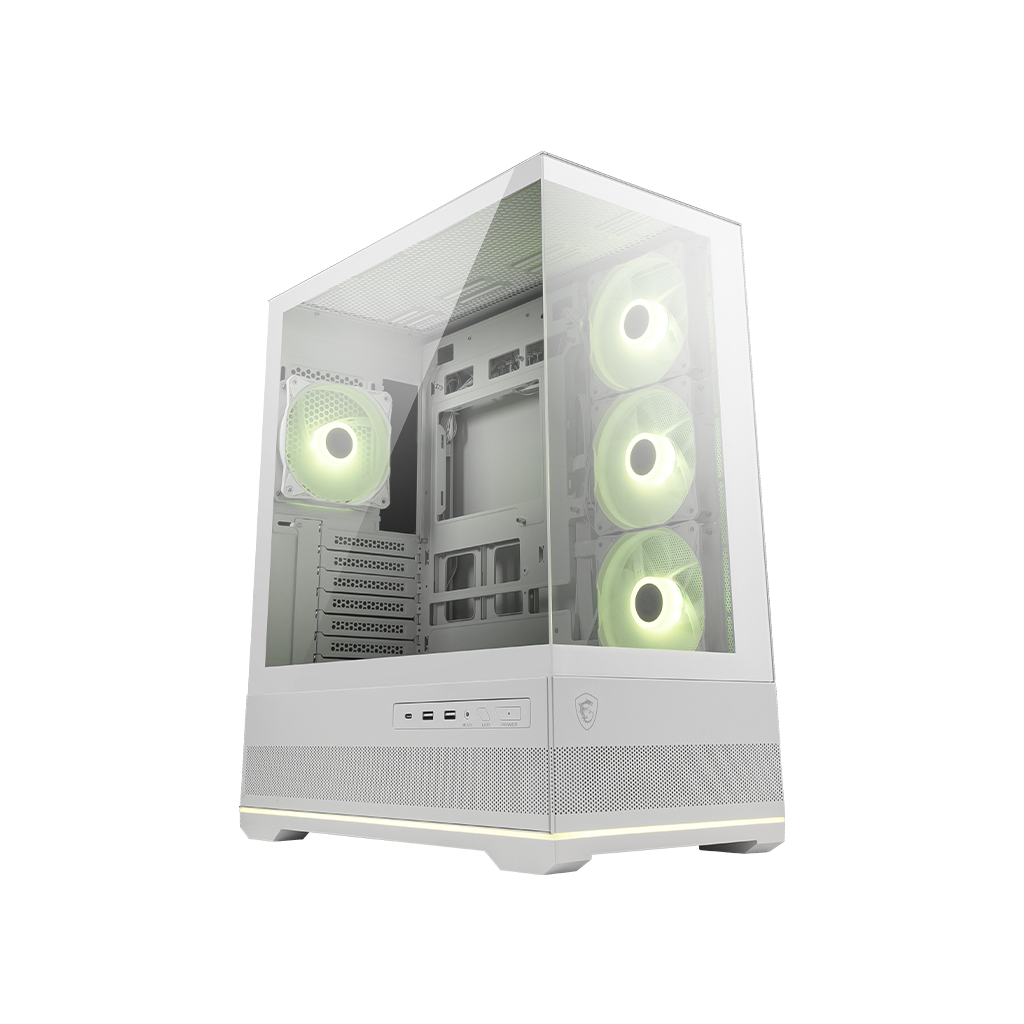

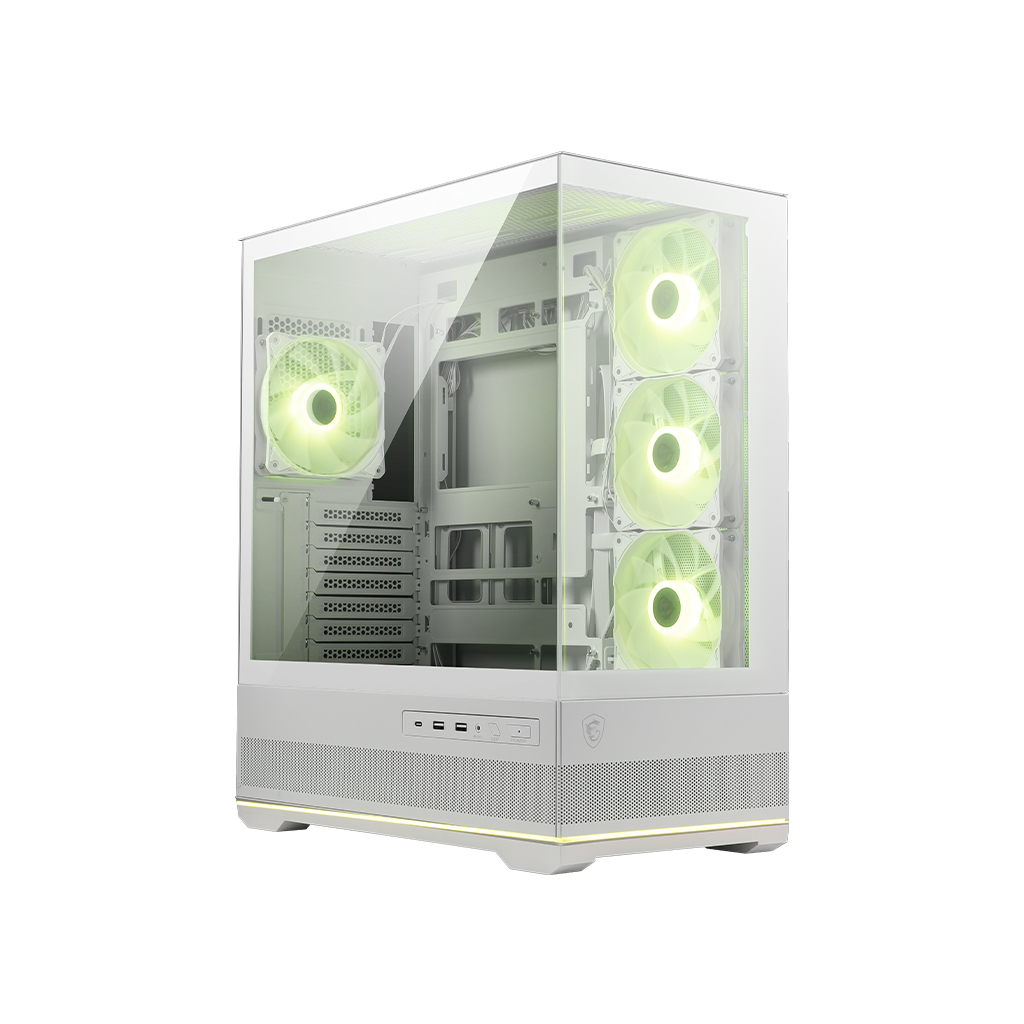

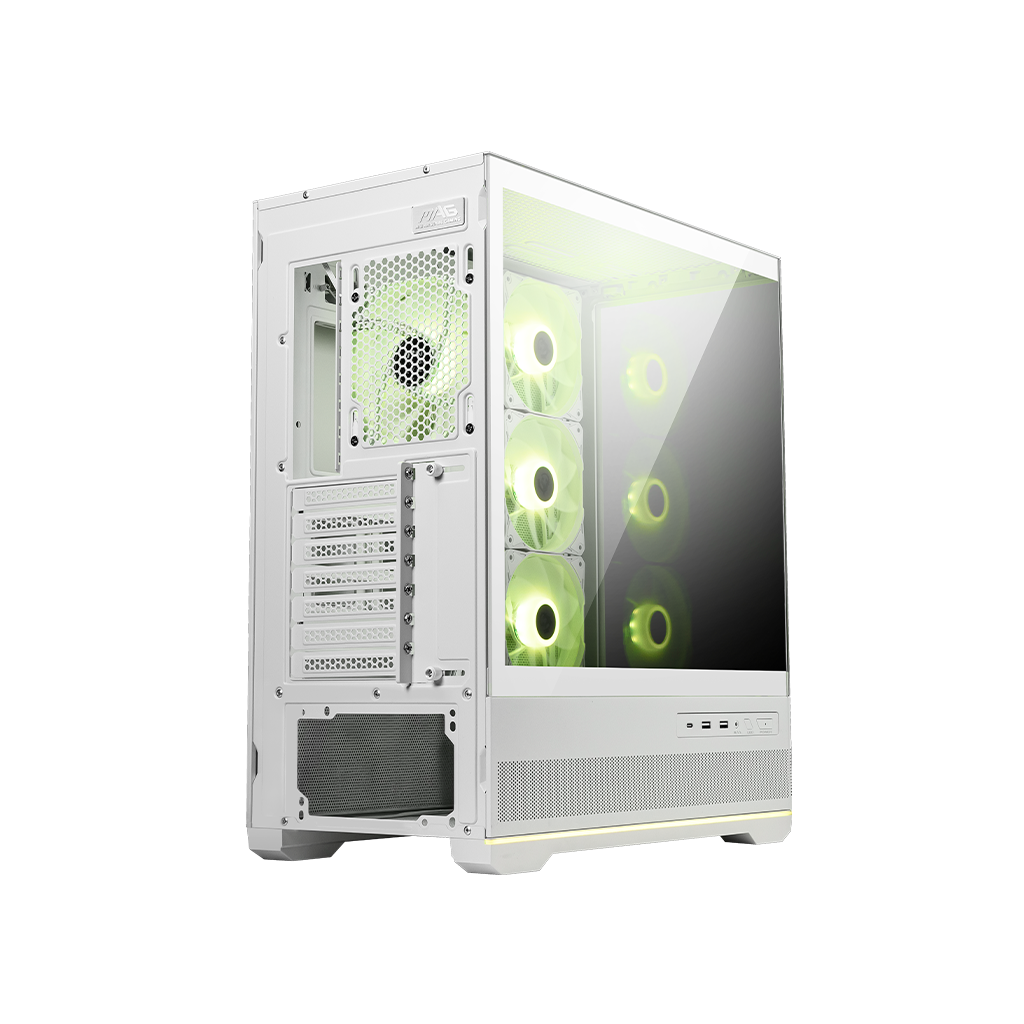

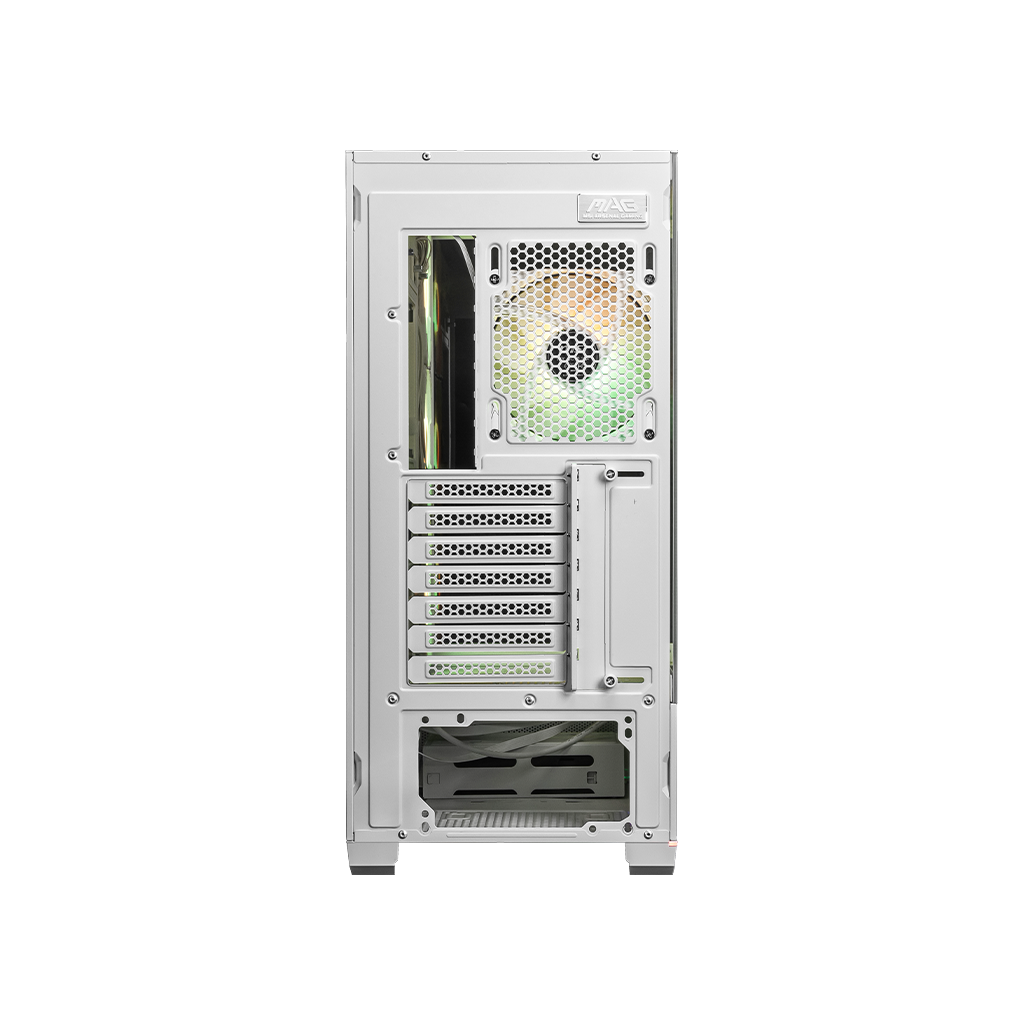

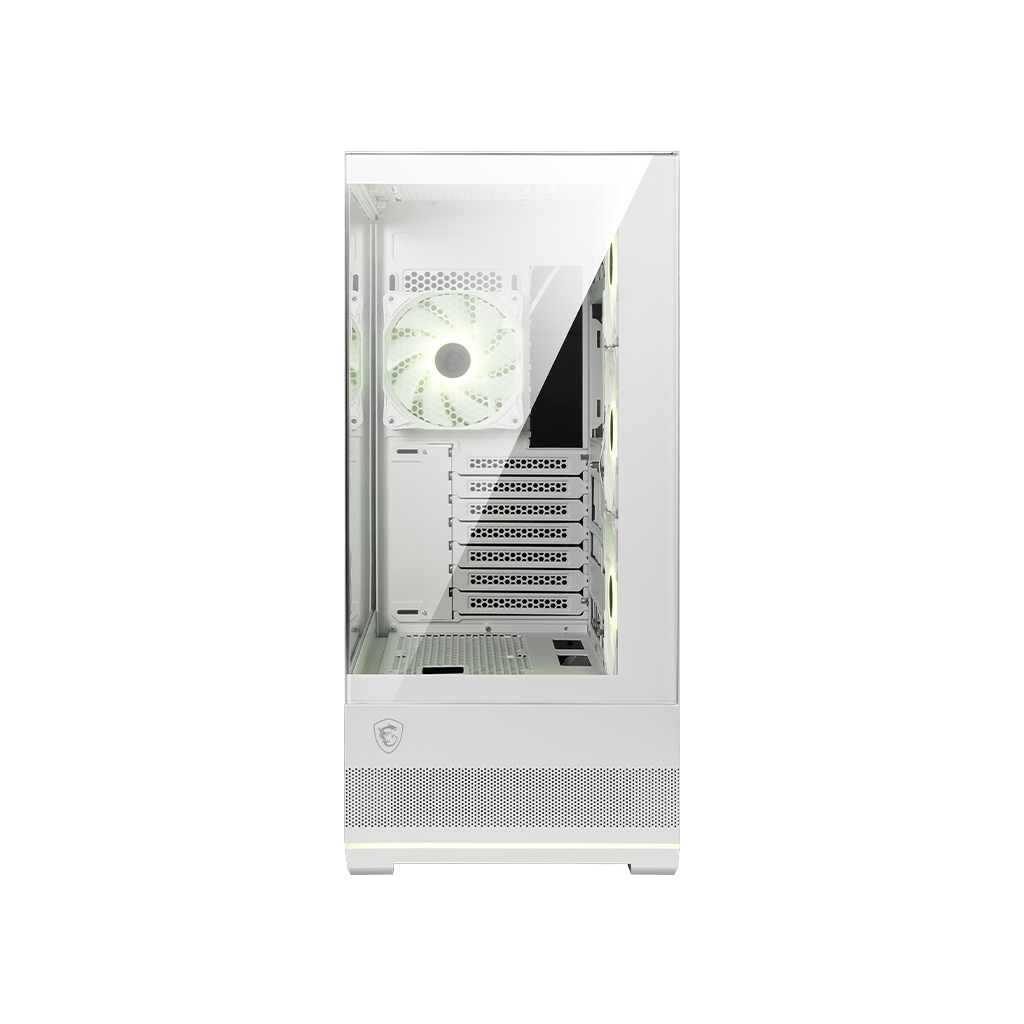

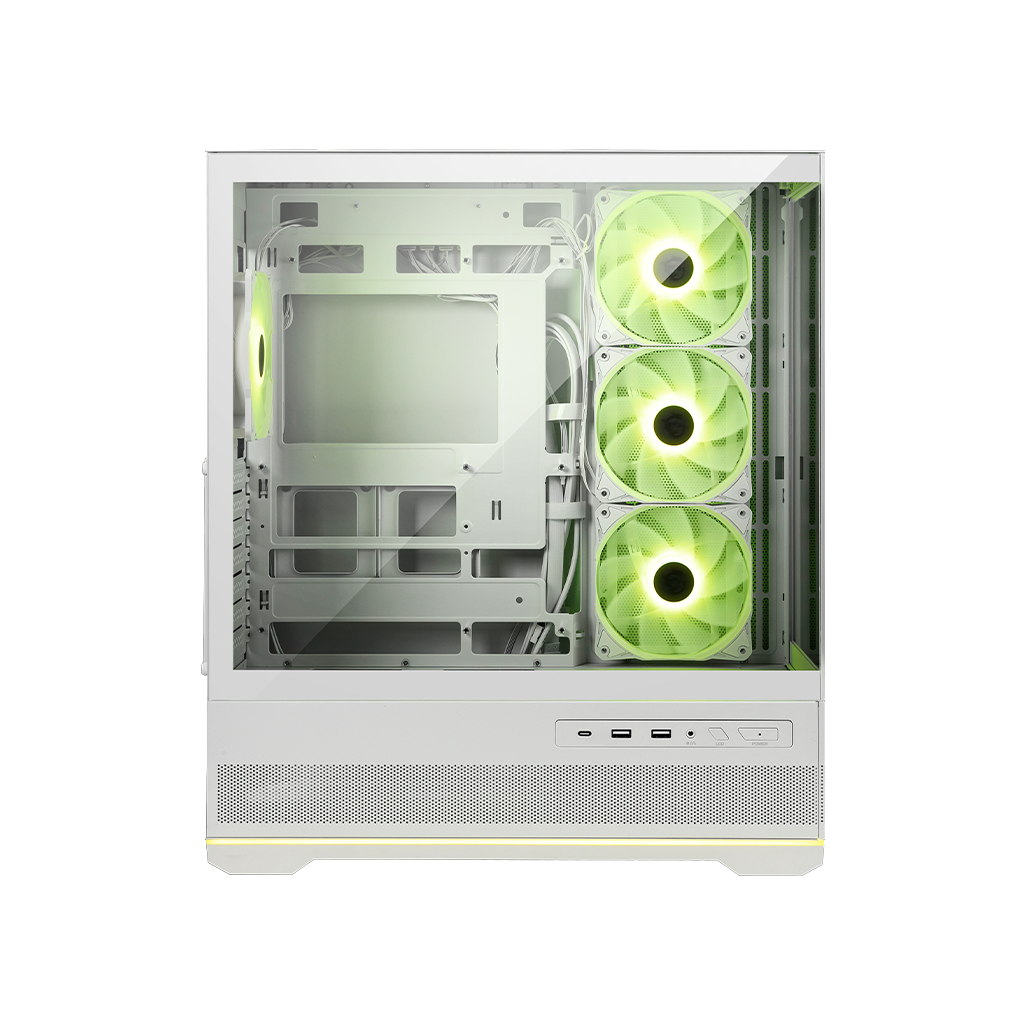

The MAG PANO 110R PZ WHITE is a compact mid-tower case engineered for optimal airflow and compatibility. It supports up to 10 fans, with four pre-installed, and features enhanced venting for superior heat dissipation. Designed for flexibility, it accommodates GPUs up to 400mm in length and an ATX or Micro-ATX back-connect motherboard. A 270-degree panoramic design highlights your build, while removable glass panels and an ARGB fan hub simplify installation and cable management.
This PC case includes a pre-installed 1-to-5 ARGB Fan Control Hub, simplifying cable management and ARGB lighting control.
The MAG PANO 110R PZ WHITE is a compact mid-tower case that offers ample space:
Motherboard support:
Component clearances:
The MAG PANO 110R PZ WHITE fan cooling options include:
*Pre-installed Fans:
Increased number of vents on the sides and front of the case to enhance overall heat dissipation. Supports up to 10 fan installations and comes pre-installed with three reverse-blade fans on the side and one regular fan at the rear.
The case boasts a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
The SSD bracket features a tool-less design, and the HDD cage is adjustable, allowing users to build systems with greater flexibility.
Storage options:

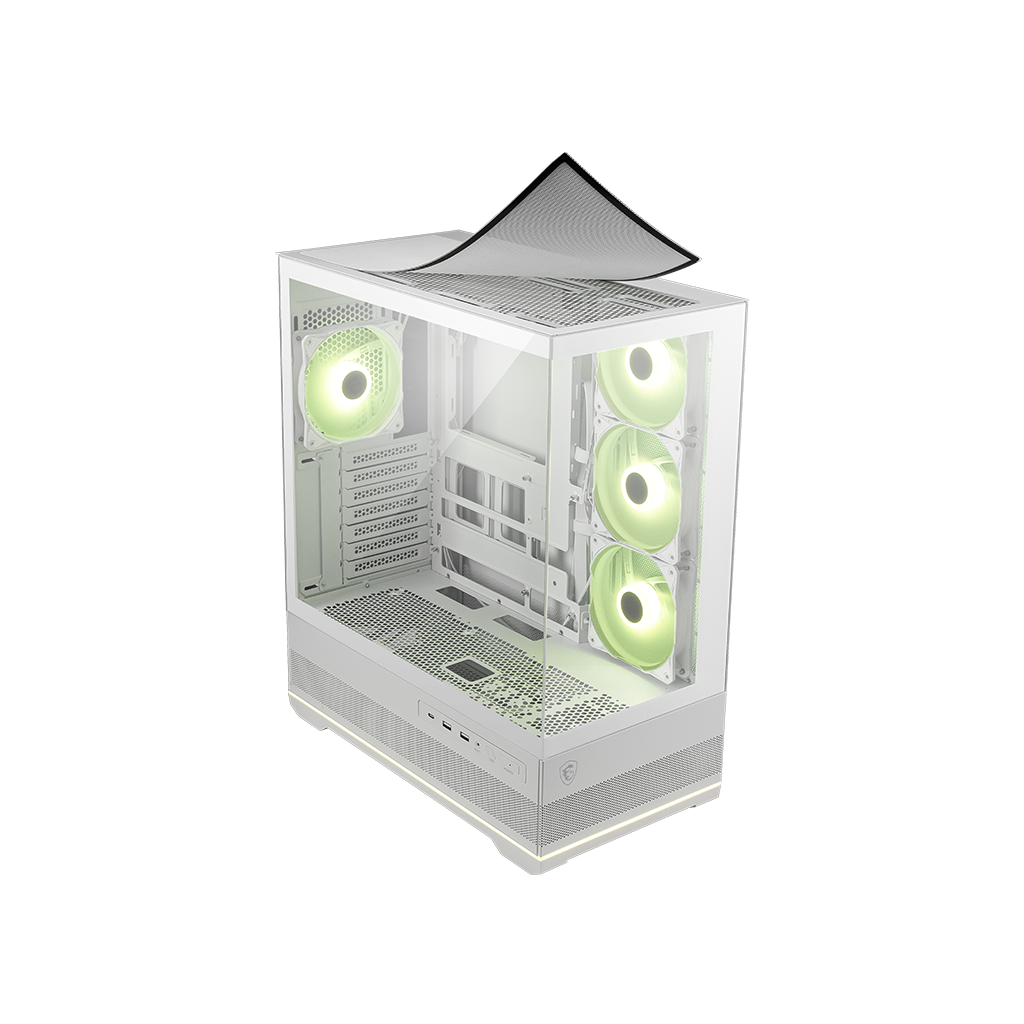

The case includes two removable filters on the top and bottom, helping protect internal components from dust buildup.
The side I/O panel features a USB 20Gbps Type-C port for high-speed data bridging to compatible motherboards.
| SPECIFICATIONS | |
| Product Name | MAG PANO 110R PZ WHITE |
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |
| I/O Ports | 1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED Button 1 x Power Button |
| Drive Mount Support | 2 x 2.5“ 2 x 3.5“ 2 x 2.5"/3.5" combo |
| Expansion Slots | 7 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 160 mm / 6.30 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm (Above the power shroud) |
| Pre-installed Fan Size | Side: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-installed Fan Type | Side: 3 x ARGB Fan (Reverse Blades Fan) Rear: 1 x ARGB Fan |
| Radiator Size Support | Top: 120 / 140 / 240 / 280 / 360 mm Front: NA Rear: 120 mm Side: NA Bottom: NA |
| Dimensions (DxWxH) | 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches |
| Connection | 1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) Mic In/ Audio Out LED Button Power Button |
