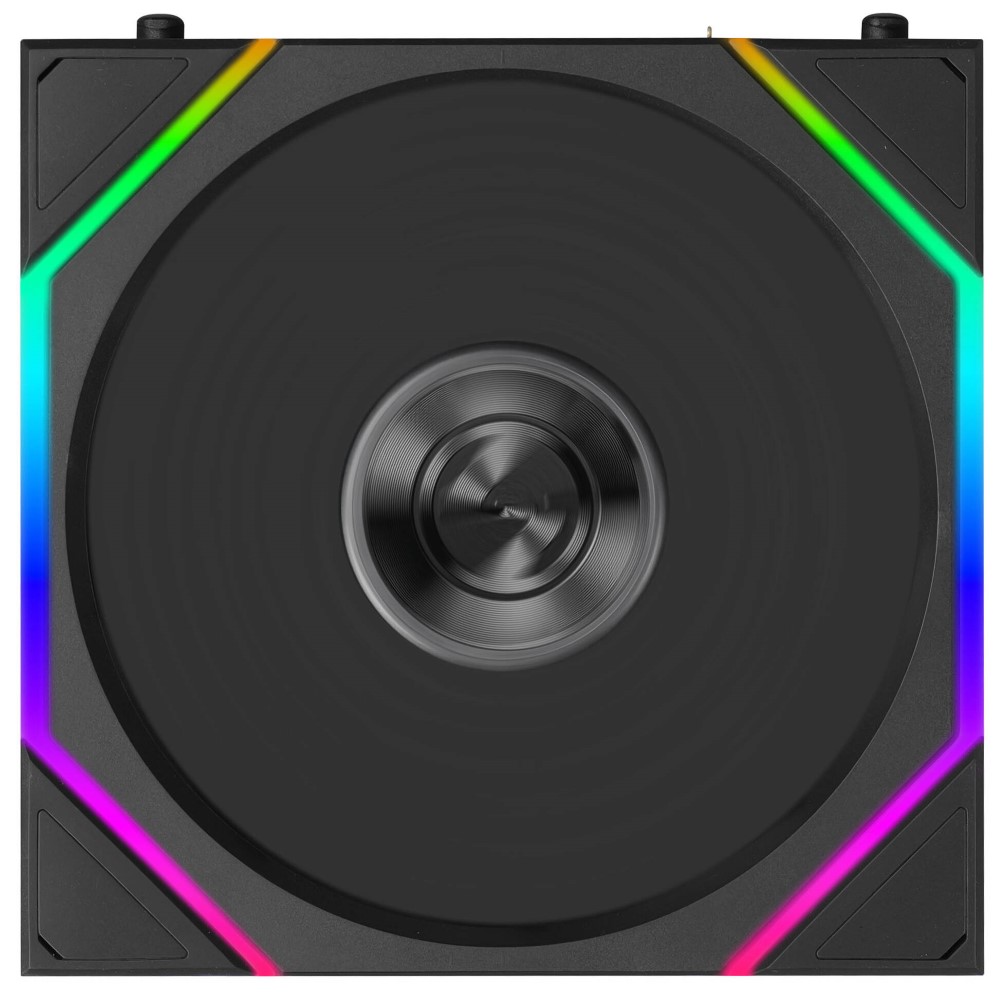

EXPANDED LCD, ENHANCED VISUALS

Featuring an upgraded 1.8”LCD with a slimmer bezel, 400 × 400 resolution, a 60Hz refresh rate, and support for MP4, GIF, JPG, and PNG, it delivers crispier visuals and greater creative freedom for personalized displays.

1.8” LCD Display

Slimmer Bezel

Full Blade Coverage

60Hz Refresh Rate

400 × 400 Resolution

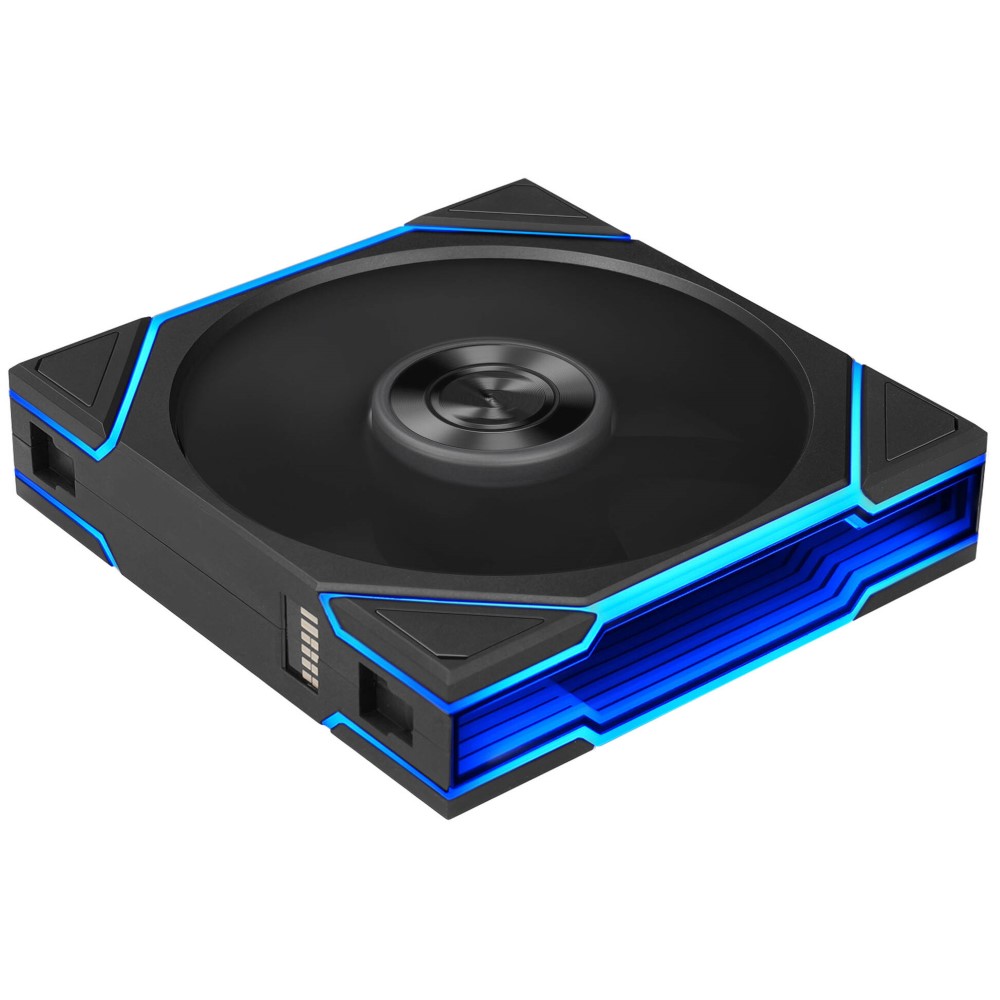

UNI FAN TL FLEX and TL LCD FLEX feature refined lighting with a seamless infinity mirror design. The ARGB light strip extends around the mounting screws for a cleaner, more unified look.

Engineered Without Compromise

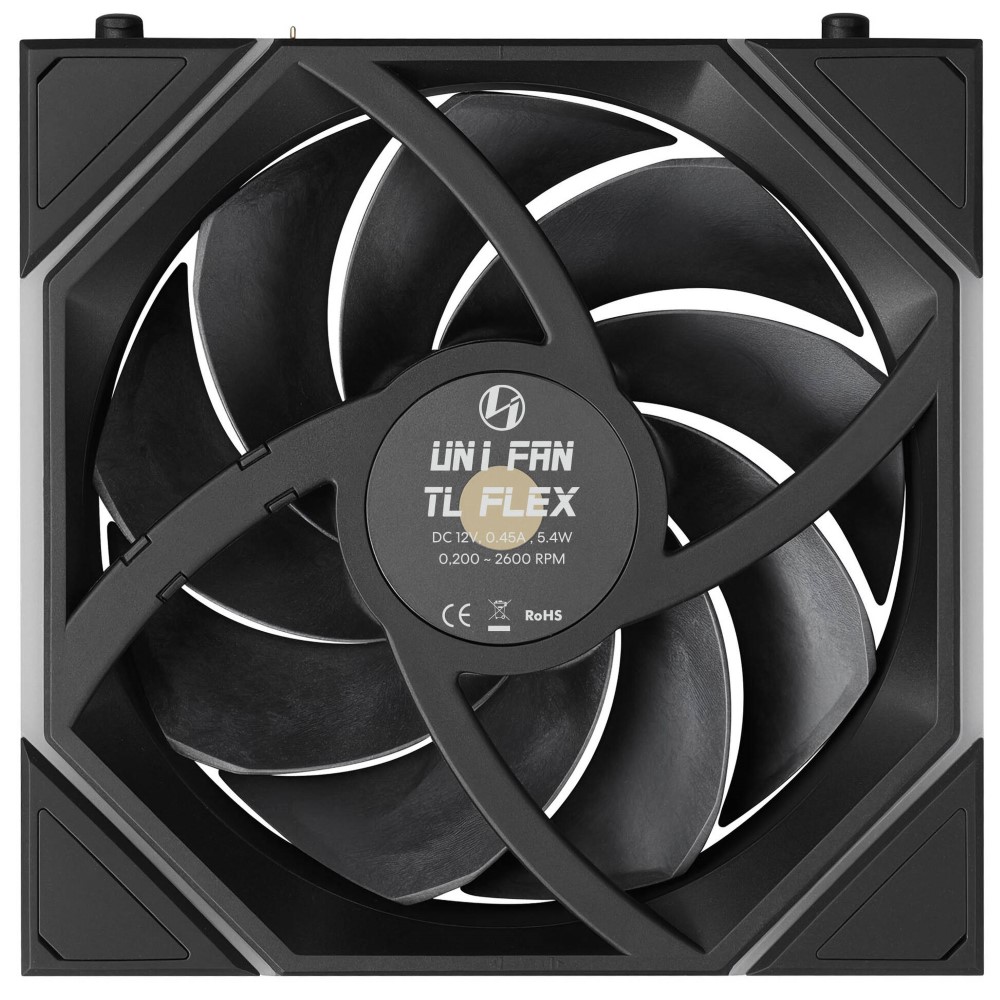

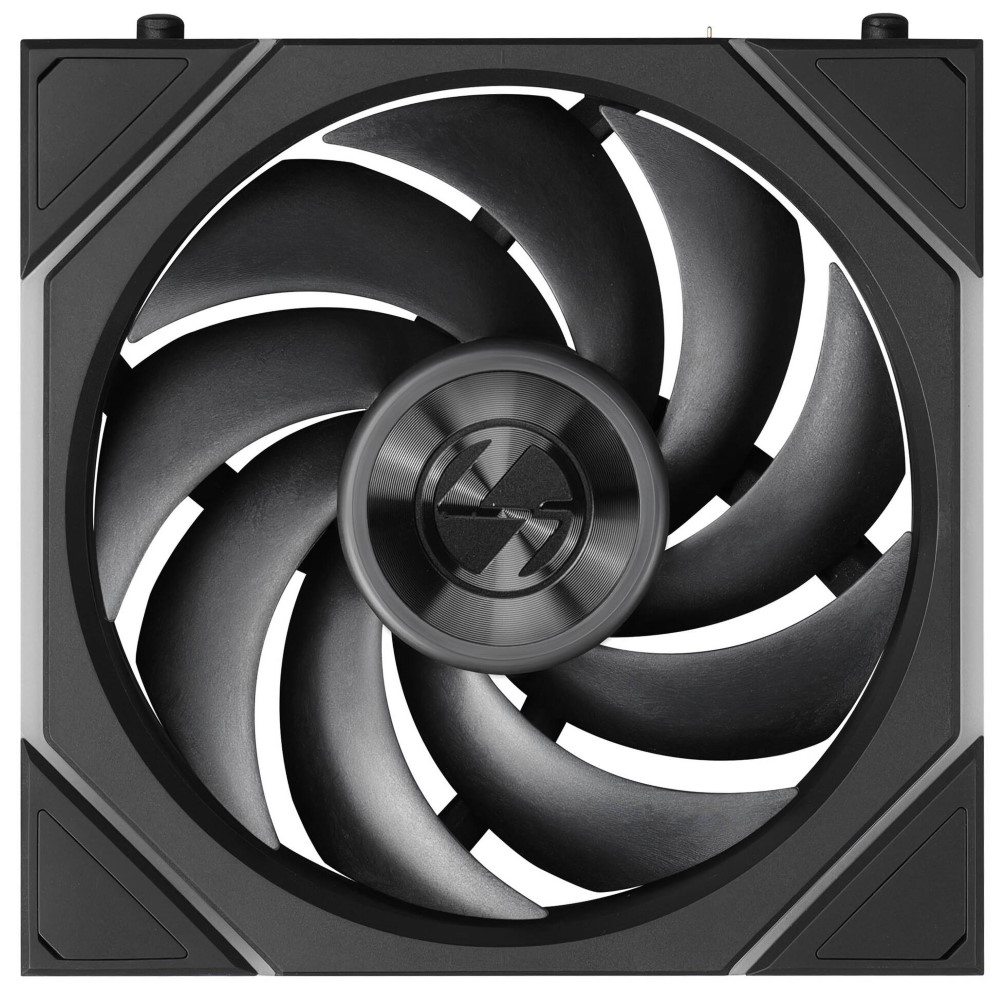

Designed for enthusiasts who demand maximum cooling, TL FLEX pairs premium LCP fan blades with an ultra-tight 0.6 mm blade clearance and precision FDB bearings to deliver exceptional airflow, static pressure, and stability—all certified by PPLP Lab A-Class Performance.

Match the correct receiver to the correct fan model.

UNI FAN TL FLEX

UNI FAN TL LCD FLEX

Using the included FLEX receivers, the UNI FAN FLEX Series supports both L-Connect 3 and motherboard control, giving you the flexibility to choose the control mode that best fits your setup.

Connect both the 4-Pin PWM and 5V 3-Pin ARGB cables to your motherboard, then pair with the L-Wireless Controller for flexible fan speed and lighting control. Built-in LCD themes and motherboard ARGB synchronization create a cleaner build with seamless personalization.

Create a fully personalized LCD experience with custom images, GIFs, videos, and built-in preset themes through USB 2.0 and L-Wireless control.

Create your own monitoring dashboard on the LCD screen with custom backgrounds, live system data, and flexible layouts that perfectly match your build style.

Create a seamless LCD showcase with built-in USB mode themes designed for dual- and triple-fan setups in both vertical and horizontal layouts.

Control fan speed and lighting through the motherboard BIOS or motherboard software without a wireless controller. For LCD fans, first connect via USB to L-Connect 3 to set the default offline theme. Once saved, the content remains active, allowing users to switch to the 5V 3-Pin ARGB cable for independent lighting control without keeping the software connected in real time.

Note: The L-Wireless Receiver has a single connection port. Use either the 5V 3-Pin ARGB cable or the USB 2.0 cable.

Note: Wireless Mode offers 29 built-in LCD preset themes with dedicated Fan RPM display for real-time fan monitoring.

Longer redesigned cables make routing cleaner and cable management easier.

Driven by 2.4GHz wireless technology, one L-Wireless Controller unifies up to 10 groups of compatible LIAN LI devices through a compact rear I/O USB receiver and dedicated PWM receivers, creating a cleaner, more streamlined wireless ecosystem.

Note: Each controller supports up to 10 channels and is compatible with all UNI FAN Wireless Series products, including TL FLEX, SL-INF FLEX, STRIMER WIRELESS, and UNI FAN SL Wireless V2. Support for additional products will be added in future updates.

With L-Connect 3, lighting effects and fan curves are fully within your control. Built-in presets and customizable profiles let you fine-tune every detail and create a system that reflects your style.

Note: Only packages labeled “LCD” include fans with an LCD screen.

12TL1F1B
