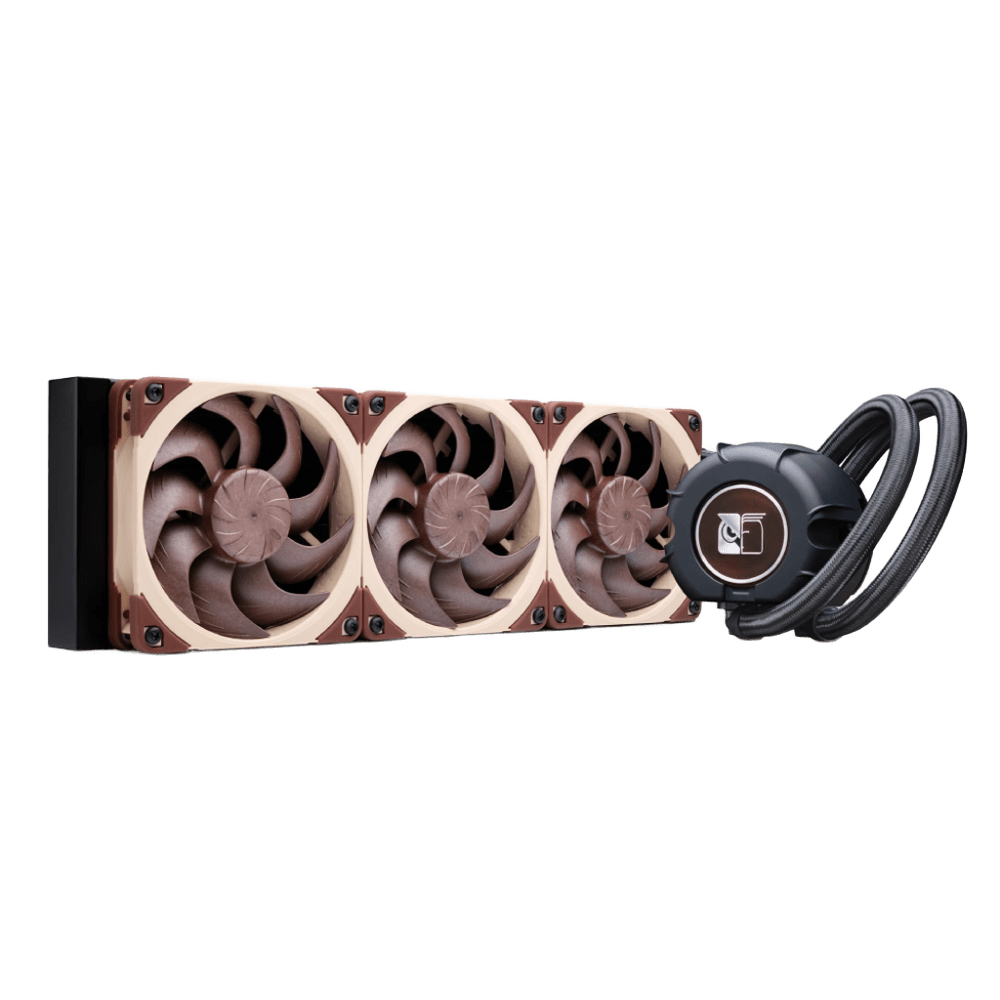

Noctua NL-LC1-36 360mm AIO Liquid Cooler

₹41,999

27,599

You Save : ₹14400 (34%)

Offer ends in...

Brand Noctua
Availability In Stock

  • State-of-the-art AIO platform

    Asetek Emma V2 system provides industry-leading performance and reliability

  • Innovative pump noise absorber

    Ensures quieter pump operation and lower vibration levels

  • Triple NF-A12x25 G2 fans

    360mm radiator with best-in-class fans for cutting edge performance-to-noise efficiency


Proven Asetek Emma V2 platform

Asetek has been on the forefront of all-in-one liquid cooling technology for over two decades and its Emma V2 premium platform is a testament to this long-standing expertise: The latest refinement of a proven, highly mature system that provides state-of-the-art performance and reliability.

Three pump speed profiles

The NL-LC1 series’ pump comes with an integrated mode switch that makes it possible to choose between three settings: While the pre-selected quiet mode ensures minimal noise emission, the balanced mode provides extra performance headroom, and the manual mode gives users full control over the pump’s entire RPM range.

NL-PNA1 pump noise absorber

The NL-LC1 series are world’s first all-in-one liquid coolers to feature an integrated pump noise absorber that leverages both acoustic soundproofing and the tuned-mass damper effect. Thanks to this twofold working principle, the NL-PNA1 reduces air-borne noise and structure-borne vibrations at the same time.

Three-layer soundproofing structure

The NL-PNA1 pump noise absorber integrates three layers of acoustic foam: While a first soft, open-pore layer right above the pump targets higher frequency noise, a dense mass barrier in the middle blocks and reflects lower frequency ranges. A second open-pore layer combats residual noise that penetrates the first two layers.

Tuned-mass damper vibration reduction

The NL-PNA1’s soft acoustic foam layers and floating silicone mounting not only reduce the transmission of vibrations but also act as the spring components in a tuned-mass damper system. With the dense mass barrier and the outer hard plastic shell acting as mass nodes that counteract the movement of the pump, the NL-PNA1 is highly efficient in reducing structure-borne noise.

Self-bleeding start-up mechanism

Closed-loop liquid coolers require a certain amount of air inside the loop to allow for thermal expansion and safe transport in different environmental conditions. To reduce the risk of air bubbles getting trapped inside the pump, the NL-LC1 automatically boosts its pump to higher speed levels for 50 seconds at startup for proper bleeding.

Automatic liquid temperature monitoring and RPM boost

While the NL-LC1 gives users full flexibility in setting custom PWM curves to reduce the rotational speed of the pump all the way down to 750rpm, it features an integrated liquid temperature sensor for monitoring and automatically boosts the pump speed in case the liquid temperature rises above 45°C to ensure safe operating conditions.

360mm size for cutting-edge performance

The NL-LC1-36 utilises a 360mm size radiator for three 120mm fans. Its large surface area and triple fan configuration enable cutting-edge performance-to-noise efficiency and make it possible to run the fans at near-inaudible speeds while still maintaining excellent cooling.

Slim profile for optimal compatibility

Thicker radiators and fans may cause clearance issues with other components. By contrast, the NL-LC1 series utilises slim 30mm radiators with a high fin density paired with standard 25mm thickness fans. This makes it possible to achieve outstanding performance whilst maintaining a slim profile (59mm total thickness including anti-vibration gaskets, pads and screw heads) to ensure maximum compatibility.

State-of-the-art NF-A12x25 G2 fans

The NL-LC1-36 includes three of Noctua’s award-winning, flagship model NF-A12x25 G2 PWM fans. Packing all of Noctua’s latest technological refinements including a speed offset to avoid undesired resonance phenomena, these premium grade, state-of-the-art 120mm fans are the cornerstone of the NL-LC1-36’s class-leading performance-to-noise efficiency.

Fan speed offset for optimal acoustics

The NL-LC1-36’s NF-A12x25 G2 fans are offset in speed by +50rpm (PPB) and -50rpm (PPA) in a PPA/PPB/PPA pattern. This slight speed offset between adjacent fans helps to avoid undesired acoustic interaction phenomena such as periodic humming or vibrations due to beat frequencies.

Optional NL-ACF1 80mm auxiliary fan (available separately)

Customers who require additional airflow over near-socket components can add the optional, magnetically attaching NL-ACF1 auxiliary cooling fan on top of the NL-PNA1 pump noise absorber. Thanks to a large NF-A8 impeller and a custom-designed frame that uses the Coanda effect to optimise flow distribution as well as the ribs on the NL-PNA1 for rotational energy conversion, the NL-ACF1 provides excellent low-noise cooling performance for VRMs, RAM, M.2 SSDs or other components.

SecuFirm2+™ multi-socket mounting system

The NL-LC1 series utilises the same, proven SecuFirm™ mounting ecosystem Noctua’s air-cooled heatsinks are famous for, which enables an easy transition from air to water cooling, upgrade paths for future sockets and backwards compatibility with legacy platforms. The included, Torx®-based SecuFirm2+™ kit supports AMD AM5 and AM4 as well as Intel LGA1851/1700.

Optimised contact pressure

Even minute amounts of flex in mounting parts can cause performance losses. Our SecuFirm2+™ system has been continuously refined to ensure optimal force transfer and contact pressure, which can give the NL-LC1 a slight edge over other Emma V2 coolers that utilise the stock mounting system.

Offset mounting options for AMD and Intel

The NL-LC1 includes offset mounting bars for both AMD AM5 (NM-AMB15) and Intel LGA1851 (NM-IMB9). In both cases, the offset mounting shifts the centre of the cooler towards the hotspot of the CPU in order to enable improved contact pressure and heat transfer where it matters the most.

Compatibility with past and future sockets

Thanks to Noctua’s SecuFirm™ ecosystem, the NL-LC1 coolers can be made compatible with the older LGA1200/115x or even LGA1366 and LGA775 sockets using optional mounting kits, which are provided free of charge through Noctua’s customer support. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NL-LC1 coolers a safe long-term investment.

NT-H2 thermal compound

For customers who want the best of the best in closed-loop liquid cooling, every degree counts. This is why the NL-LC1 coolers include a tube of Noctua’s highest grade NT-H2 thermal compound that provides even better performance than the award-winning NT-H1, allowing to achieve the best possible cooling results.

Thermal paste guard for AMD AM5

When the mounting pressure of the cooling solution is applied, excess thermal paste will be squeezed outwards. With AM5 CPUs, this excess paste tends to accumulate in the cut-outs at the sides of the heatspreader and may become difficult to remove. Simple and risk-free to apply, the NA-TPG1 prevents this undesired phenomenon.

6-year manufacturer’s warranty

Testament to the industry-leading reliability and spotless track record of Asetek’s premium AIO platforms, the complete NL-LC1 package comes with the same, trusted 6-year manufacturer’s warranty as Noctua’s fans and air coolers.

Key Specifications
Pump model Asetek Emma V2
Socket compatibility AM5, AM4, LGA1700, LGA1851, LGA1954
Radiator form factor 360 mm
Fan configuration 3x NF-A12x25 G2
Total radiator assembly thickness 59
NSPR 248
Warranty 6 years
Scope of Delivery

NL-LC1-36 closed-loop liquid cooler with NL-PNA1 pump noise absorber
Metal Noctua logo faceplate
3x NF-A12x25 G2 PWM fans with speed-offset (PPA/PPB/PPA)
3x NA-AVG1 anti-vibration gaskets (pre-installed)
NA-SC1 3-way splitter cable
NA-EC1 30cm extension cable
Fan and radiator mounting screws (Torx® T20)
SecuFirm2+™ multi-socket mounting system with offset options for
AMD AM5/AM4 and Intel LGA1851/1700
NM-SD1 Torx® T20 screwdriver
NT-H2 thermal compound
NA-CW1 cleaning wipe
NA-TPG1 thermal paste guard for AMD AM5
Noctua metal case badge

Fan: NF-A12x25 G2 PWM
Size (Form factor) 120 x 120 x 25 mm (square)
Speed range 0 – 1800 rpm
Airflow (max.) 107.3 m³/h (63.15 CFM)
Acoustical noise (max.) 22.5 dB(A)
Static pressure (max.) 3.14 mm H2O
Rated voltage 12 V
Connector 4-pin
Colour Brown
Warranty 6 years
Pump block specifications
Pump model Asetek Emma V2
Pump block height 70 mm
Motor type (phases) Three phase
Impeller type Centrifugal (closed)
Bearing Ceramic sleeve and shaft
Rated voltage 12 V
Starting voltage 9.5 V
Max. operating voltage 13.2 V
Input power (max) 6 W
Input power (typical) 2 W
Input current (max) 0.5 A
Input current (typical) 0.17 A
Max. rotational speed (manual mode) 3400 rpm
Max. rotational speed (balanced mode) 2600 rpm
Max. rotational speed (quiet mode) 2100 rpm
Rotational speed @ 20% PWM 750 rpm
Rotational speed @ 0% PWM 750 rpm
Max. acoustical noise (manual mode) 14.9 dB(A)
Max. acoustical noise (balanced mode) 7.8 dB(A)
Max. acoustical noise (quiet mode) <5 dB(A)
Cable length 500 mm
Connector type 4-pin PWM
Pin configuration Link
Pin 1 Black: Ground (GND)
Pin 2 Black: Voltage (Vcc)
Pin 3 Black: RPM Signal
Pin 4 Black: PWM Signal
Cold plate material Copper CU1100 (99.95% high-purity)
Cold plate size 55.5 x 55.5 mm
Construction Skived fin micro channels
Mounting system SecuFirm2+
Mounting hole pitch 78 mm
Pump noise absorber NL-PNA1
Auxiliary cooling fan Optional (NL-ACF1)
Coolant specifications
Composition 22% propylene glycol
78% water
Inhibitors Anti-freeze
Anti-corrosion
Antibiological
Compatibility Non-toxic
Electrically conductive
Tube specifications
Material EPDM (braided)
Tube length 410 mm
Outer diameter 12.5 mm
Inner diameter 7 mm
Min. bend radius 26 mm
Radiator specifications
Form factor 360 mm
Material (fins) Aluminium
Material (tubes) Aluminium
Material (frame) Steel
Fins per inch (FPI) 20
Radiator size 399.5 x 120 x 30 mm
Fan configuration 3x 120x120x25 mm
Total radiator assembly thickness 59
Screw threads UNC 6-32
Performance specifications
NSPR 248
CPU performance see compatibility tab
Safety, compliance & environmental specifications
Safety standards EN62368-1
CE
UKCA
REACH
RoHS
Operating temperature 2°C to 50
Logistical specifications
Packaging dimensions 472 x 224.5 x 145 mm
Packaging weight (including product) 3060 g
EAN 9010018000559
UPC 841501100550
Packaging unit 4 pcs
Packaging unit dimensions 499 x 471 x 333 mm
Packaging unit weight 13.4 kg
Unit weight (without packaging) 1979 g
