₹11,999
6,999
You Save : ₹5000 (42%)
Offer ends in...
| SPECIFICATIONS | |
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| Chipset | AMD A520 Chipset |
| Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| Expansion Slot | 1x PCIe 3.0 x16 slot (From AMD processor) Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen™ 3000G processors Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors 2x PCIe 3.0x1 slots |
| Onboard Graphics | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (From AMD processor, Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio | Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H LAN controller |
| Wireless LAN & Bluetooth® | WIFI 5 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
| Internal connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper |

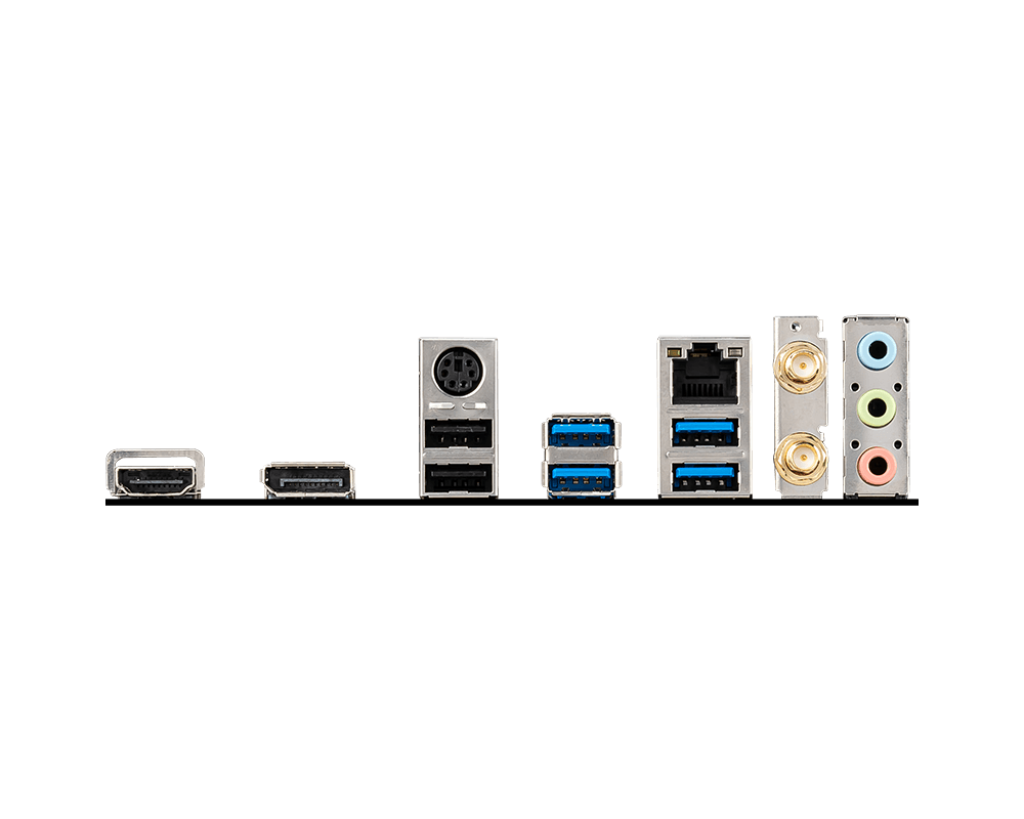

| Back panel ports | Keyboard / Mouse LAN port Wi-Fi Antenna connectors Audio Connectors HDMI™ DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A |
| Dimensions | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
| MOUNTING | 6 mounting holes |
