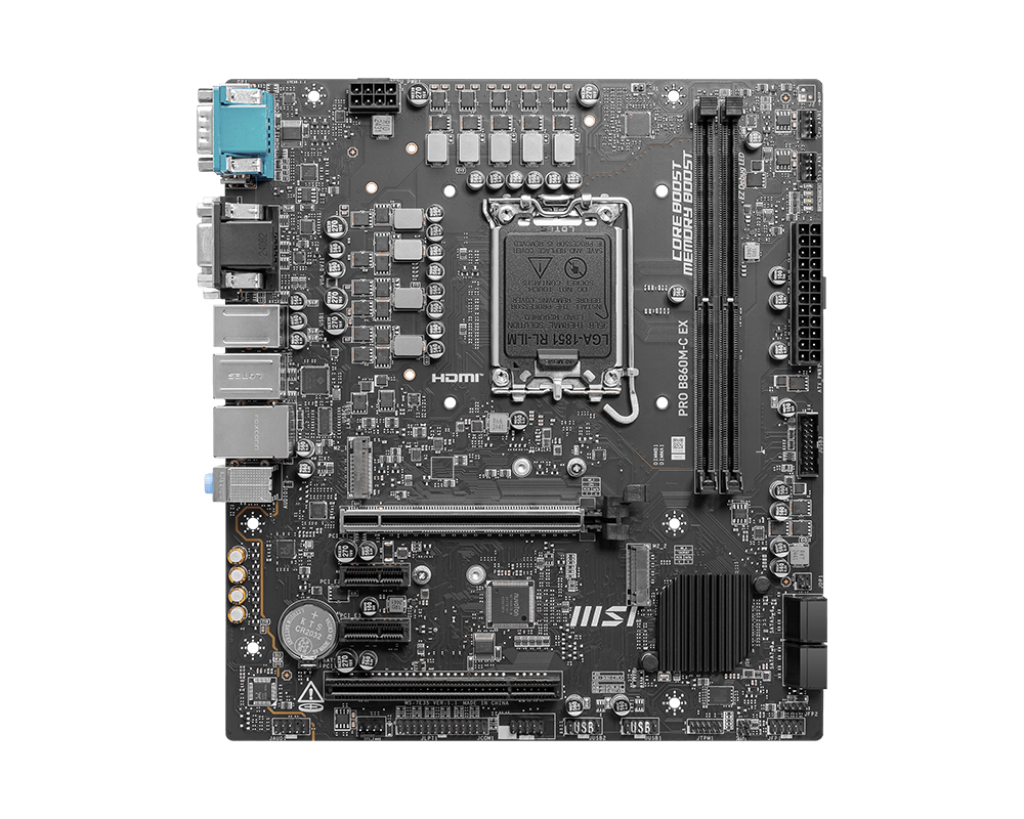

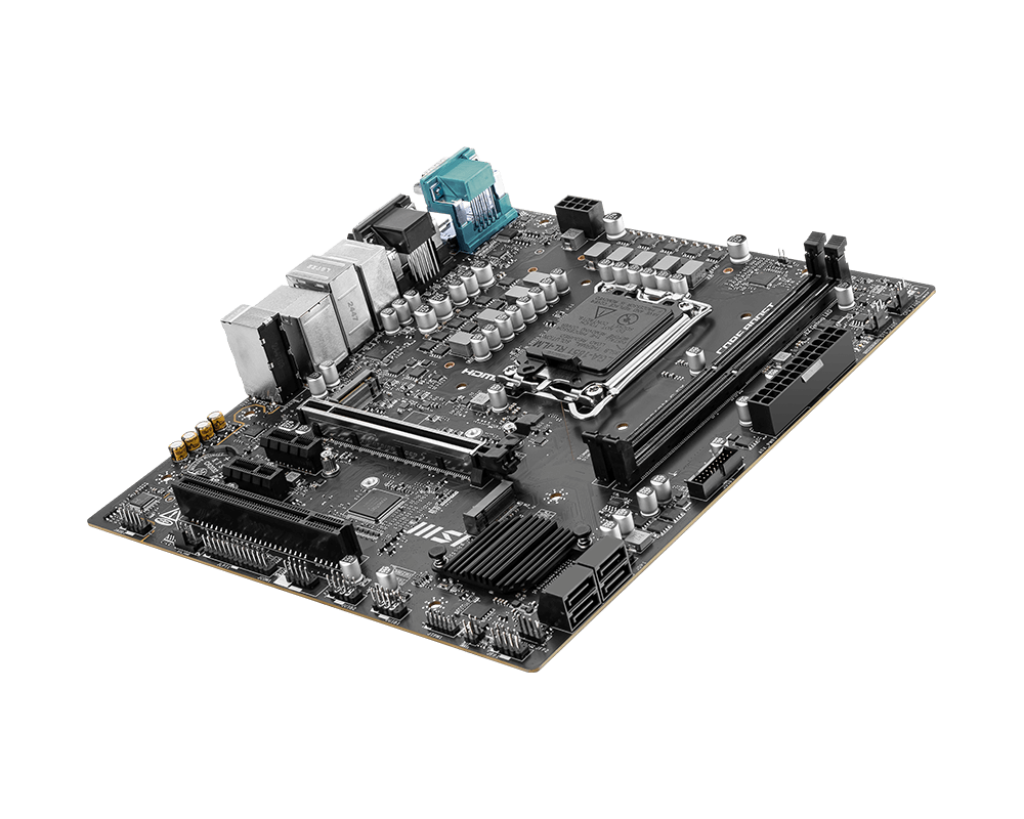

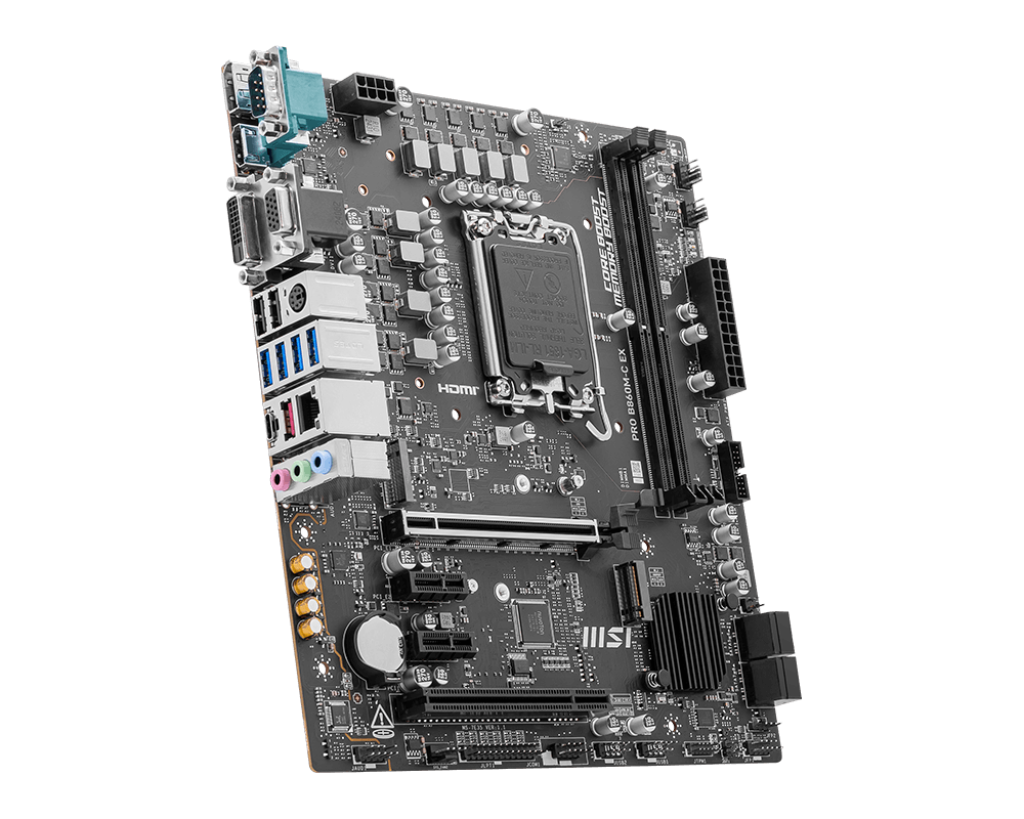

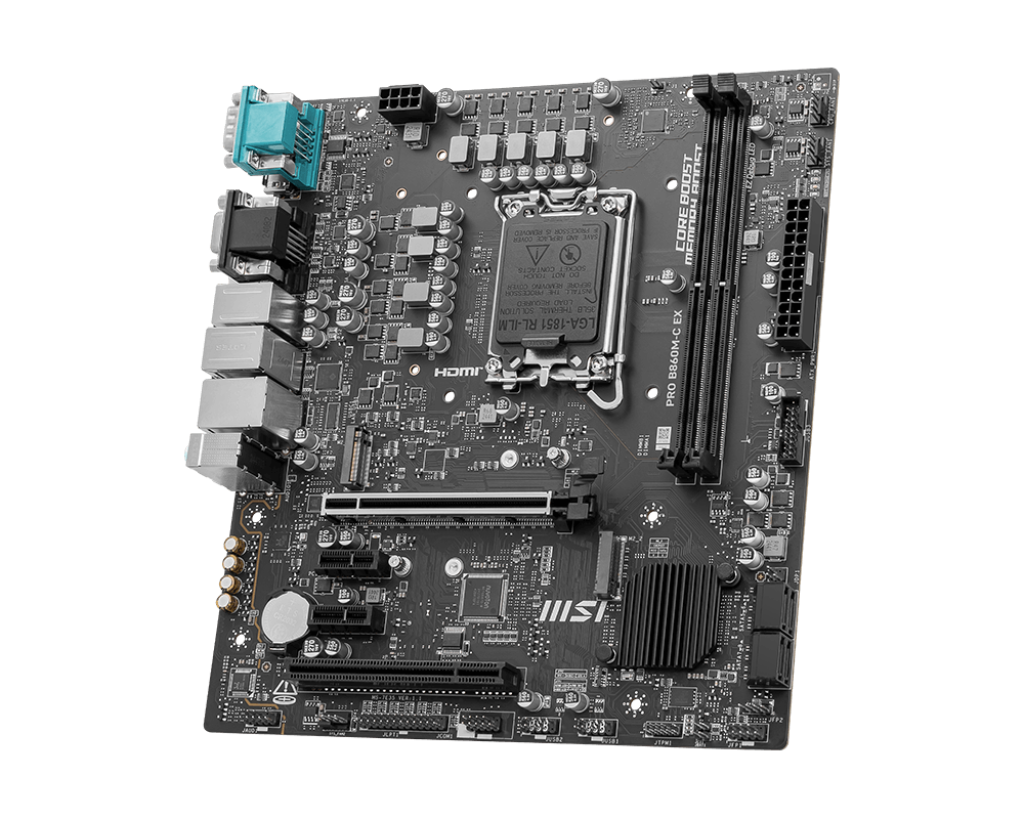

MSI PRO B860M-C EX Motherboard

₹99,999

99,999

You Save : ₹0 (0%)

Offer ends in...

Brand MSI
Availability Out Of Stock

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 - 8800+ MT/s (OC)
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
  • Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Extended Connectivity: USB Type-C with DP-Alt, DisplayPort, HDMI, DVI and D-SUB
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience



SPECIFICATIONS
Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 over USB Type-C®, maximum resolution of 4K 60Hz*
1x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
**This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled.
Slot 1x PCI-E x16 slot
2x PCI-E x1 slot
1x PCI slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
LAN Realtek® 8125 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

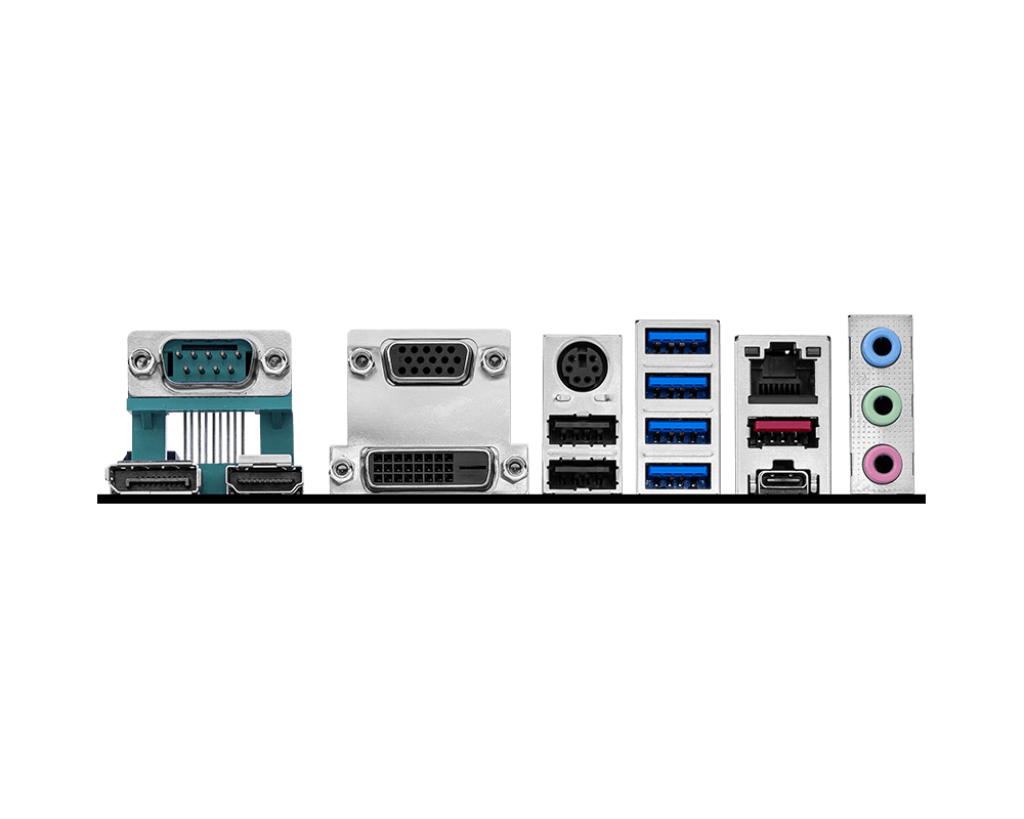

BACK PANEL PORTS COM Port
VGA
Keyboard / Mouse
USB 5Gbps Type-A
2.5G LAN
Audio Connectors
DisplayPort
HDMI™
DVI-D
USB 2.0
USB 10Gbps Type-A
USB 10Gbps Type-C (Type-C Display port)
PCB Info mATX
243.84mmx220mm
