₹24,999
13,999
You Save : ₹11000 (44%)
Offer ends in...
YOUR SMALL FORM X-FACTOR
LOOKS CAN BE DECEIVING
Ideal for small form factor (SFF) PCs that don’t skimp on power, or for saving space in a larger build, SF-L Series PSUs pack a huge punch for their size.
ON THE CUTTING-EDGE
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF-L Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

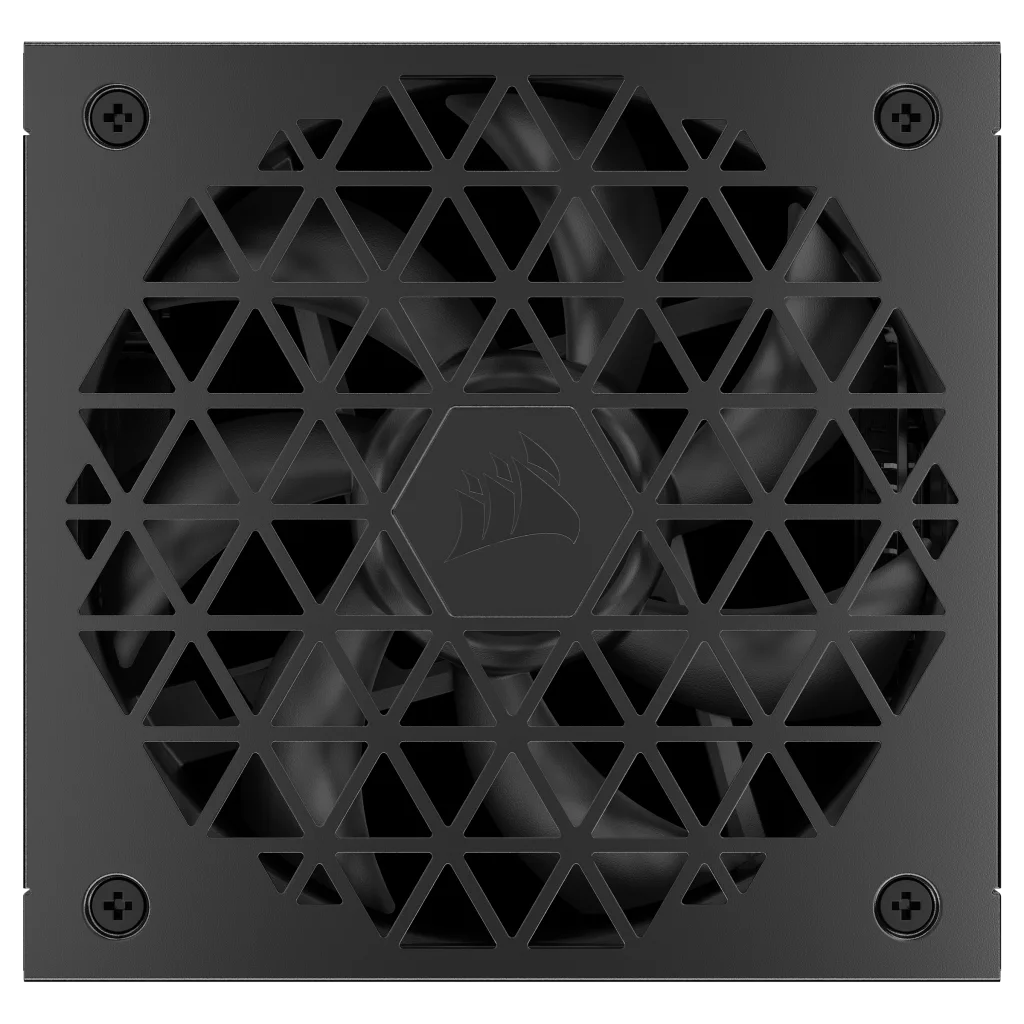

Cooled by a powerful and quiet 120mm rifle bearing fan, with support for Zero RPM mode to ensure your PSU stays virtually silent when not under high load.
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.
TAKES THE HEAT
Capable of 100% output at temperatures up to 40°C, for reliable power even under high-stress conditions.
 |
SEVEN-YEAR WARRANTYWORLD-CLASS SUPPORTOur award-winning service means you can enjoy your gear worry-free. |
| MODEL | RPS0155 | |
| PART NO. | CP-9020245 | |
| AC INPUT RATING | ||
| AC INPUT | 100–240V | |
| INPUT CURRENT | 10A–5A | |
| FREQUENCY | 47~63Hz | |
| MAX LOAD | MAX OUTPUT | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +12V | 70.8A | 850W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 850W | |
| QTY | CABLE | CONNECTORS PER CABLE | TOTAL CONNECTORS | CONNECTOR SPACING | TOTAL LENGTH | CABLE TYPE |
| 1 |
Modular ATX Cable (24-pin)
 |
1 | 1 | 300mm | 300mm (± 10mm) |
Sleeved |
| 2 |
EPS / ATX 12V 8-pin (4+4)
 |
1 | 2 | 400mm | 400mm (± 10mm) |
Flat |
| 1 |
12VHPWR (12+4) pin
 |
1 | 1 | 400mm | 400mm (± 10mm) |
Flat |
| 1 |
PCIe 8-pin (6+2) (6+2)
 |
2 | 2 | 400mm, 100mm | 500mm (± 10mm) |
Flat |
| 2 |
PCIe 8-pin (6+2)
 |
1 | 2 | 400mm | 400mm (± 10mm) |
Flat |
| 1 |
SATA (4 SATA - Straight)
 |
4 | 4 | 100mm, 115mm, 115mm, 115mm | 445mm (± 10mm) |
Flat |
| 1 |
SATA (4 SATA - Right)
|
4 | 4 | 100mm, 115mm, 115mm, 115mm | 445mm (± 10mm) |
Flat |
| 1 |
PATA (4-pin)
 |
3 | 3 | 100mm, 115mm, 115mm | 330mm (± 10mm) |
Flat |
| SPECIFICATIONS | |
| ATX Connector | 1 |
| ATX12V Version | v3.0 |
| Cable Type | Type 5 |
| Continuous Power W | 850 Watts |
| EPS Connector | 3 |
| Fan Bearing Technology | FDB |
| Fan Size MM | 120mm |
| MTBF Hours | 100,000 hours |
| Multi GPU Ready | Yes |
| PCI E Connector | 3 |
| SATA Connector | 12 |
| PATA Connector | 3 |
| Modular | Yes |
| Eighty PLUS Efficiency | Gold |
| PSU Form Factor | SFX-L |
| Zero RPM Mode | Yes |
| Weight | 2.15 |
| Warranty | 7 Year |
